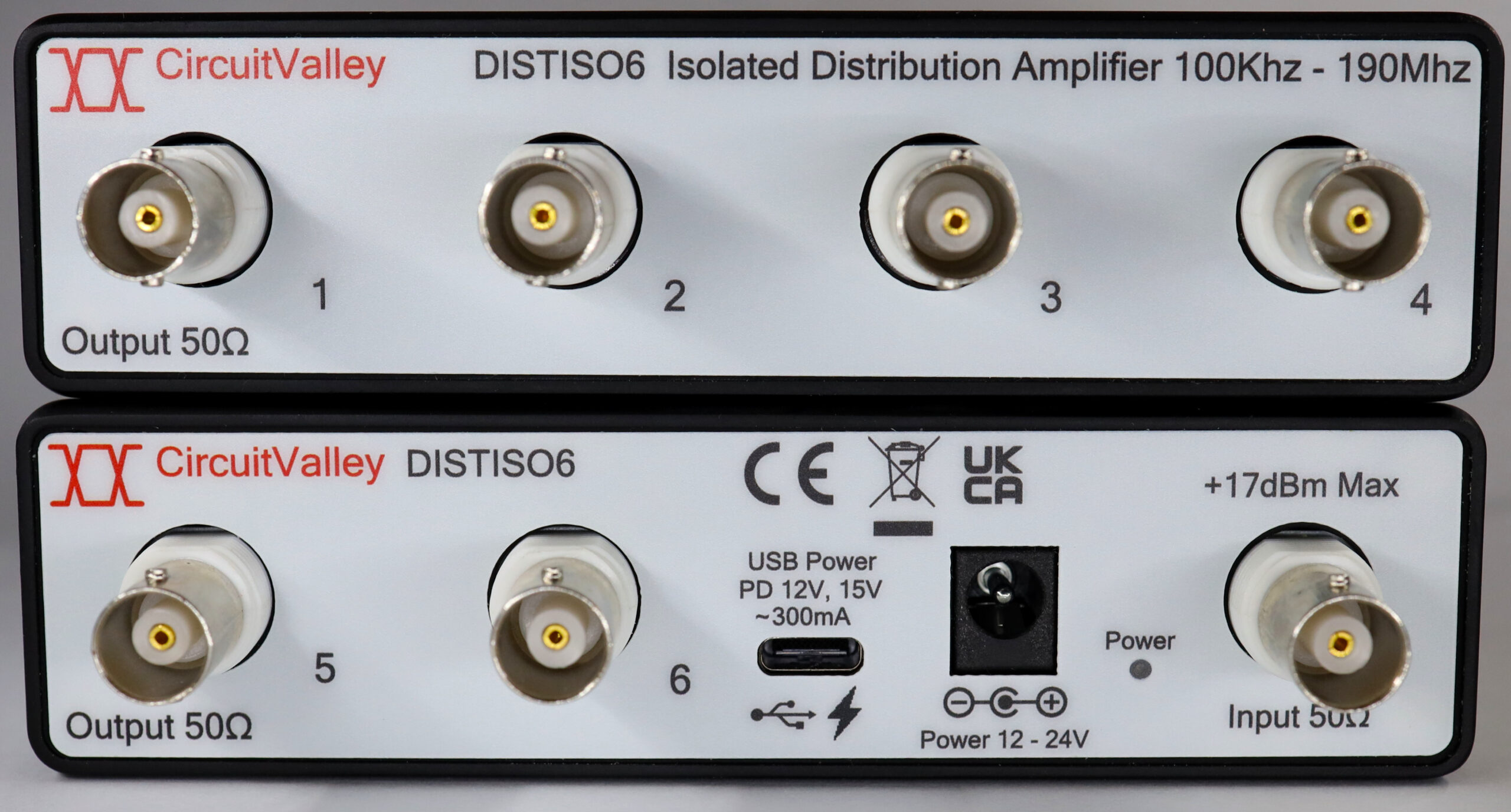

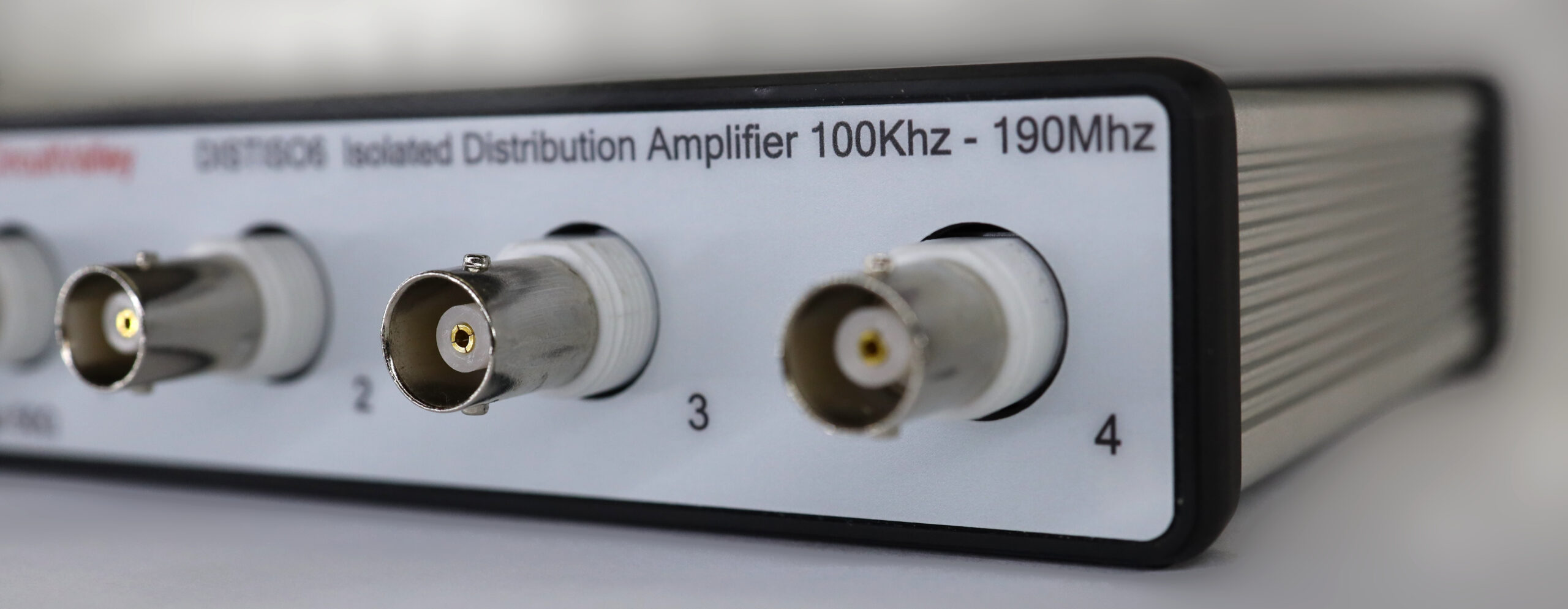

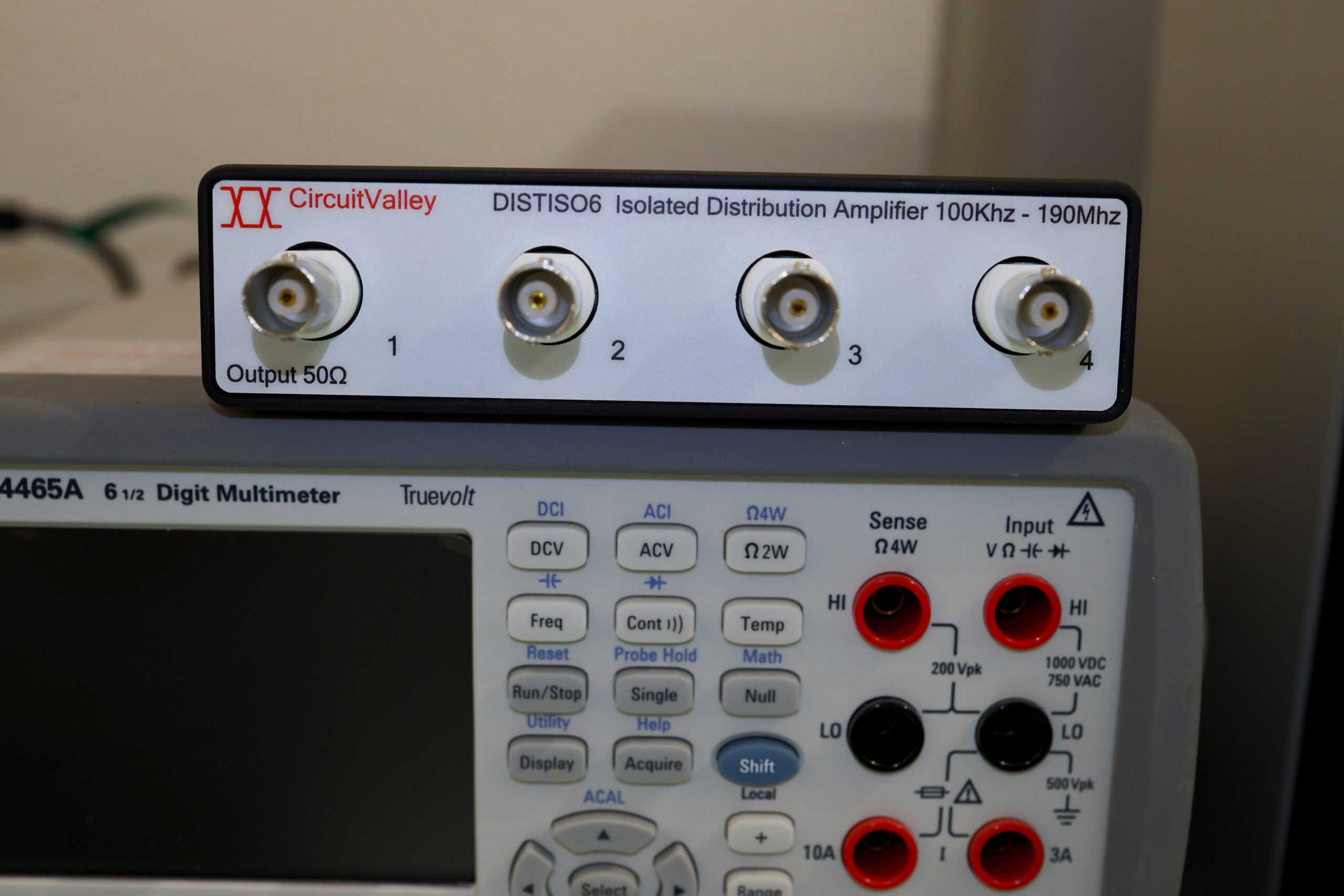

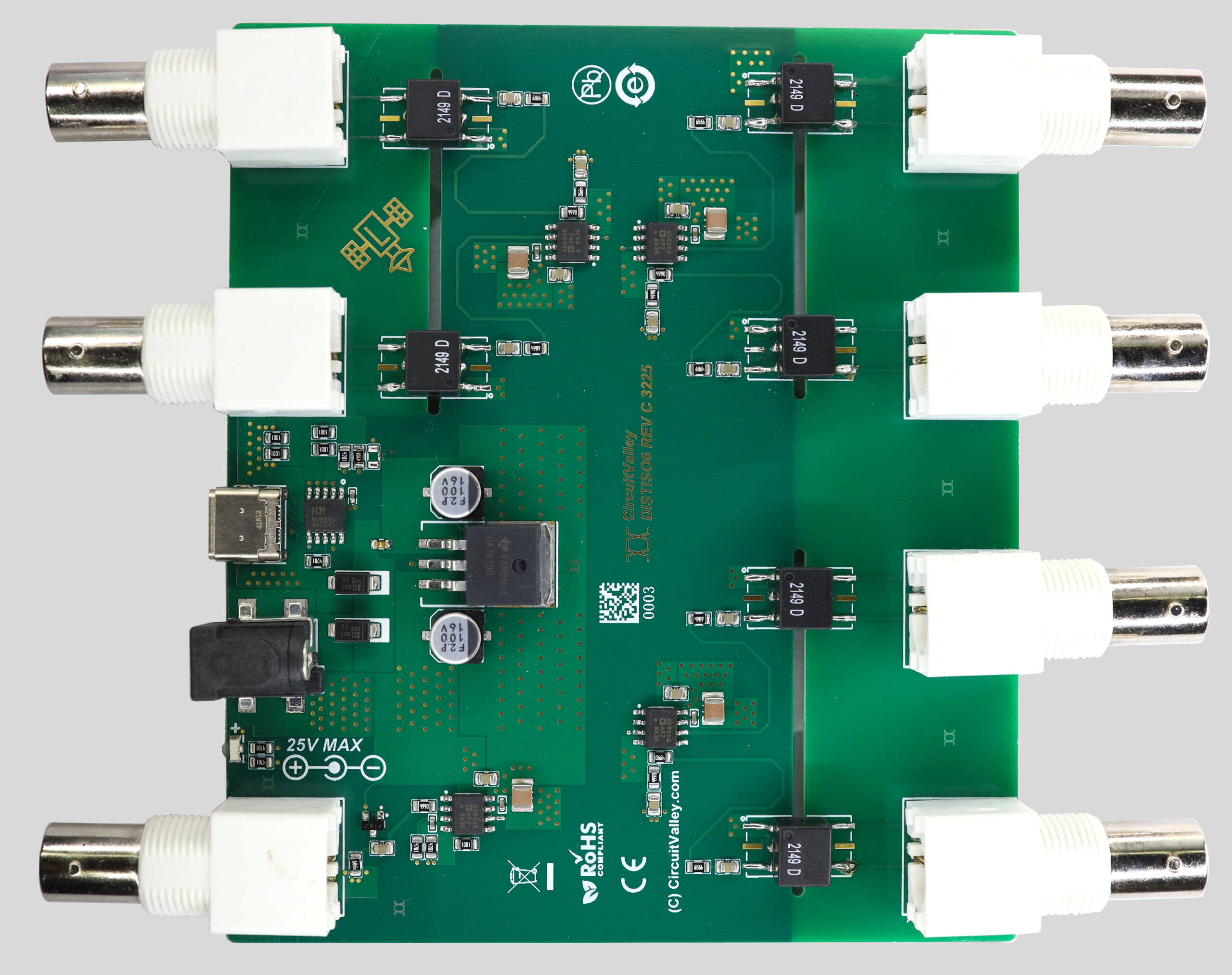

DISTISO6 Isolated Distribution Amplifier 6 Output

What is it?

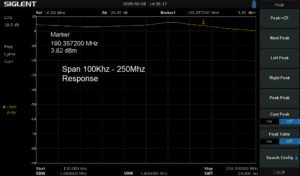

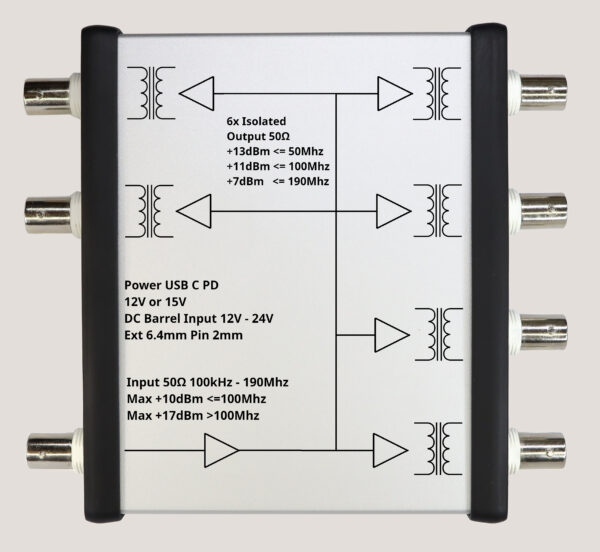

Signal Distribution Amplifier for Clock and Signal Distribution, With Bandwidth 100Khz to 190Mhz with Gain of +4dBm

Input

50 Ohm Input impedance ,

AC coupled  to Primary Stage,  Max 2V DC Offset

Max  +10dBm  for 100Khz to 100Mhz, 2Vpp + 2V DC Offset

Max +17 dBm Max 101 to 190Mhz

A standard 3.3 CMOS or TTL when driving into 50R will fall into compatible range.

If you have requirement of even Higher input voltage then external BNC attenuator can be used

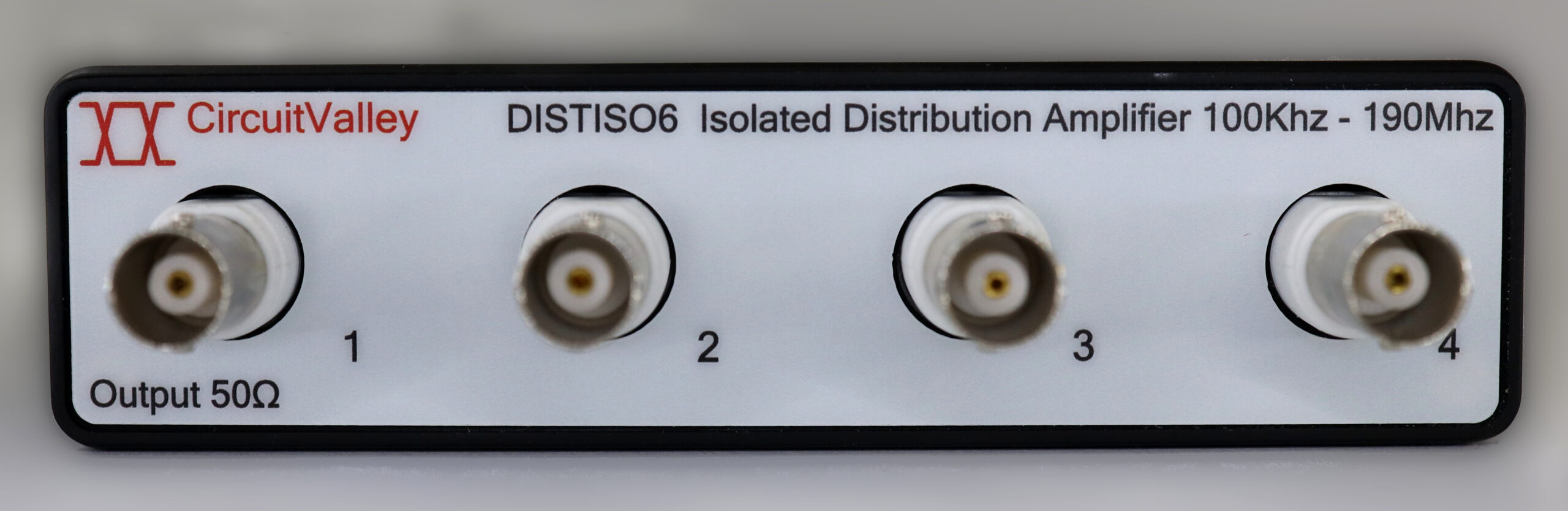

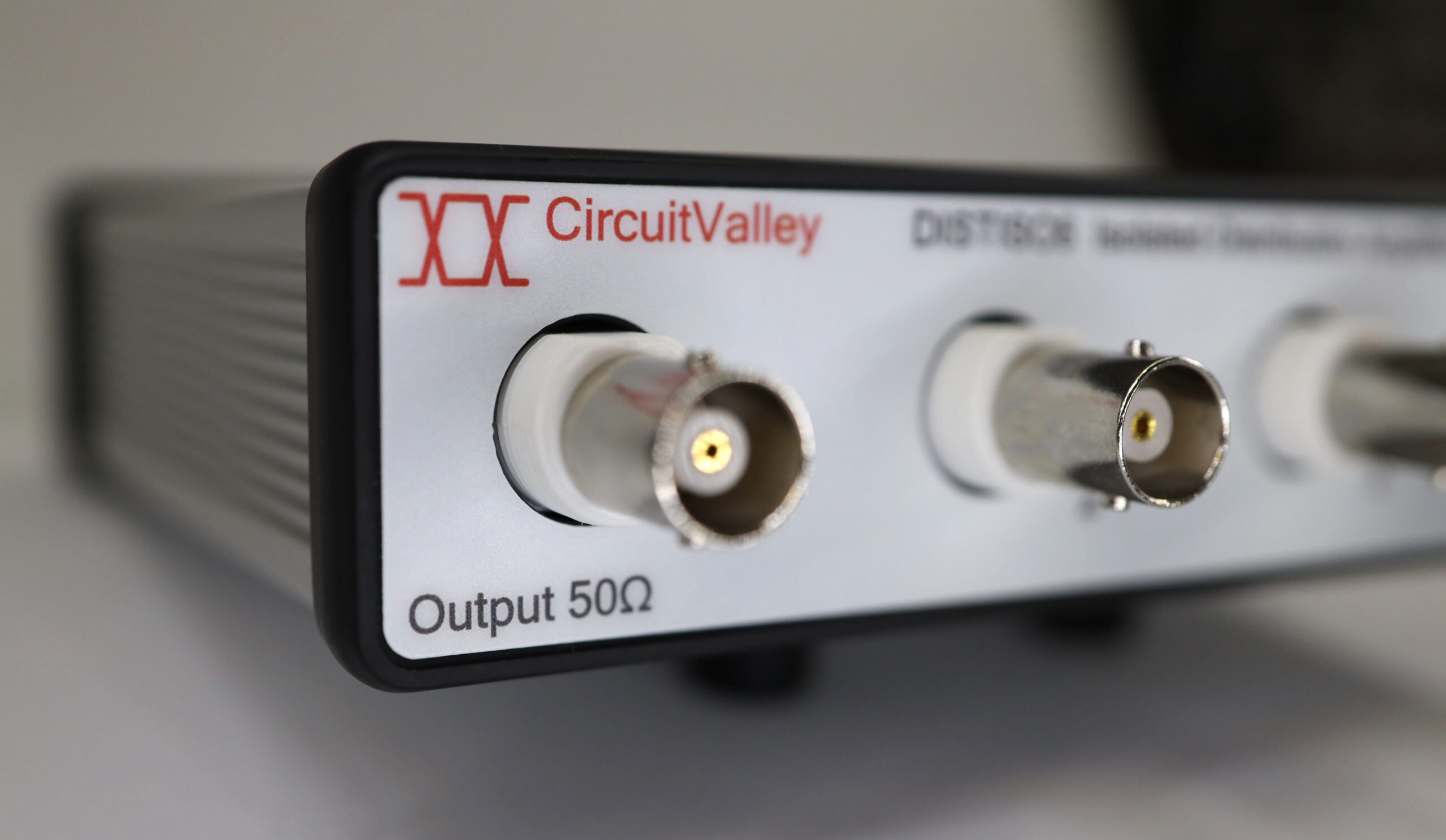

Output

50 Ohm Galvanically Isolated

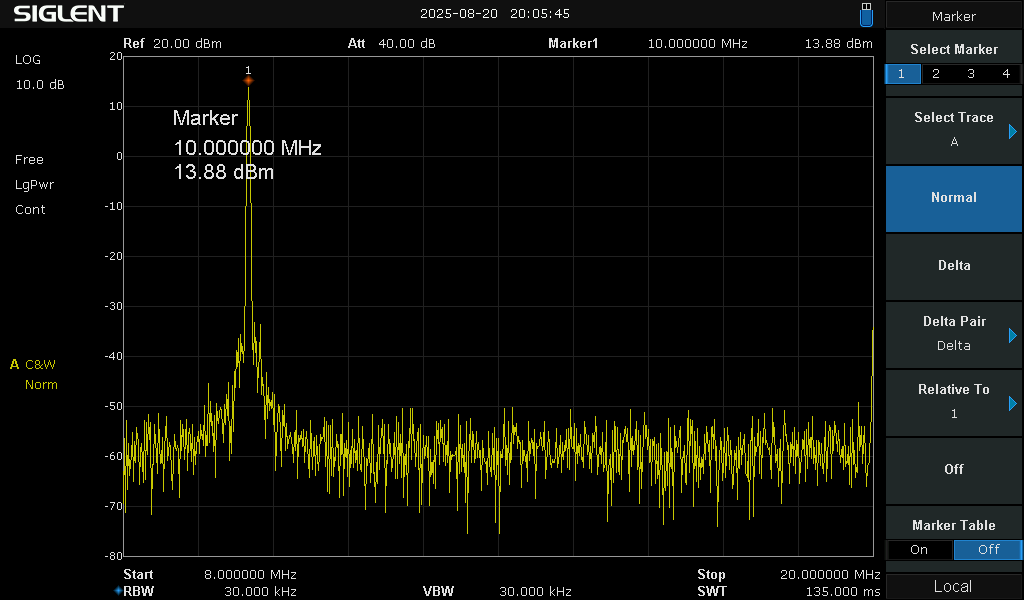

+13dBm  100Khz to 50Mhz into 50Ohm , ~6Vpp into 1Mohm

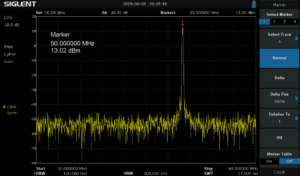

+12 dBm 50 to 100 Mhz into 50Ohm

+7 dBm 101 to 190Mhz into 50Ohm

Frequency Deviation between Channels

Base line Measured Ratio difference on same Channel max  7.956p

Channels Between same driver (e.g CH1 vs CH2) max Ratio difference of around  8.16p

Channels Between different driver (e.g CH1 vs CH3) max Ratio difference of around 10.2p , Max ~ 10 PPT

Phase Noise

Measured only with Spectrum analyzer, Device should perform same or better. Measurement are limited by noise floor of Generic SSA

-70dBc/Hz@1Hz

-90dBc/Hz@10Hz

-114dBc/Hz@100Hz

-125dBc/Hz@1Khz

Phase Deviation between Channels

TDS8000 70Ghz Bandwidth scope Was used with 50Ghz and 20Ghz sampling head, even on 1fs resolution no measurable phase difference

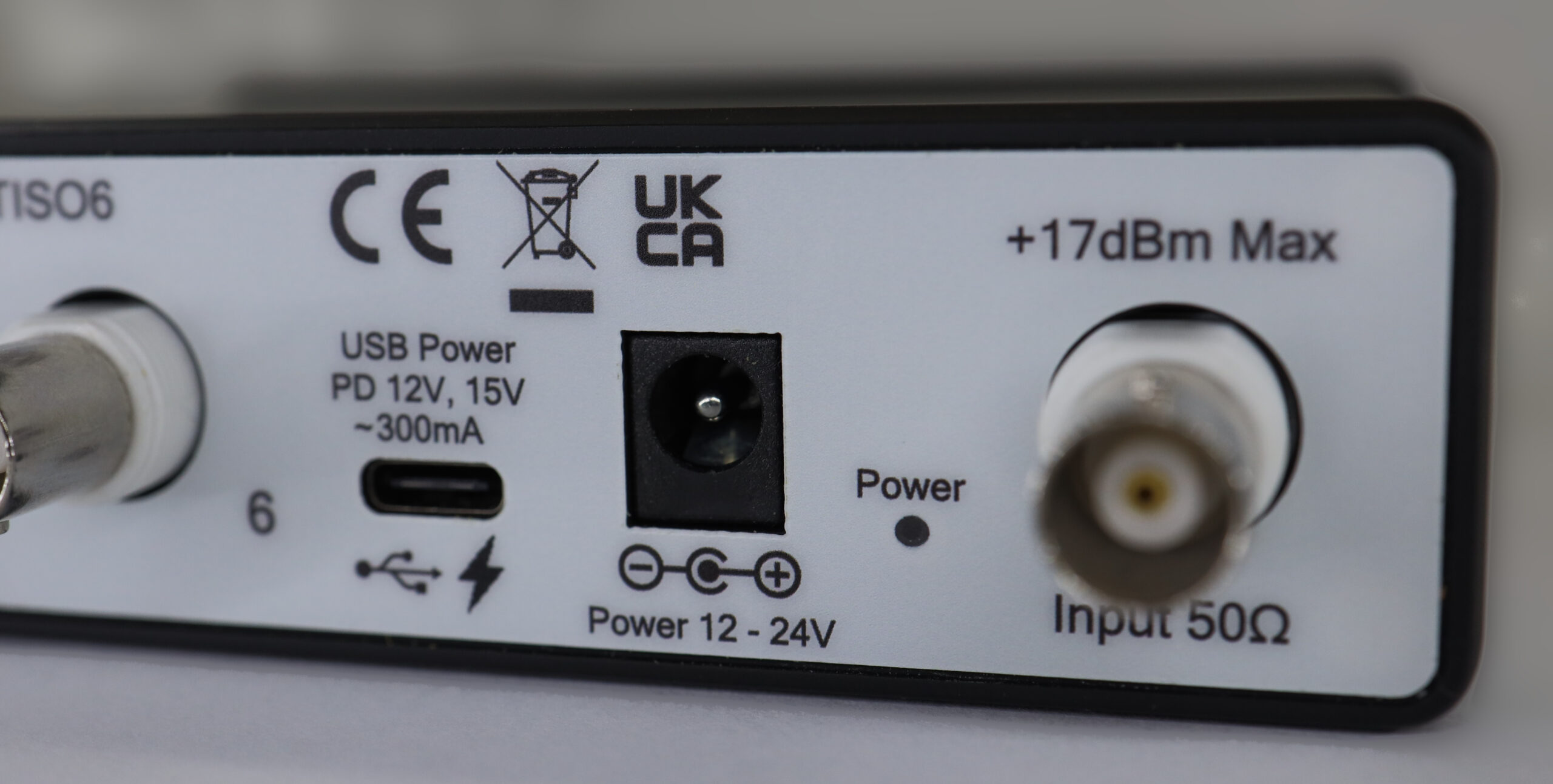

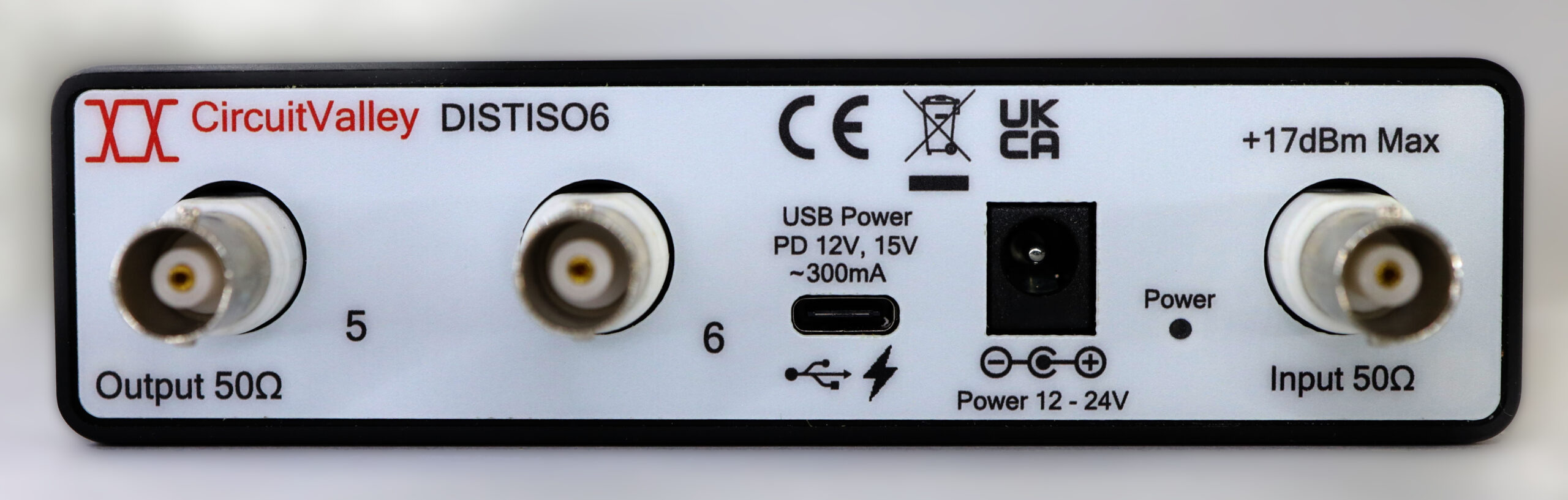

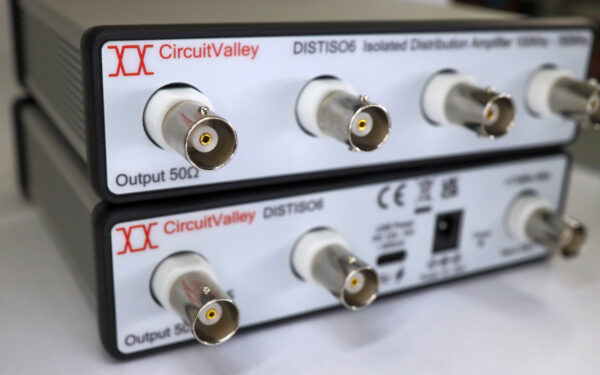

Power

Dual Power input

USB C PD 15 V or 12V

DC Banana Jack 6.5mm 2mm Pin Center Positive

You Can buy this device with a High Quality  USB C Power Supply, With High Quality USB C Cable for additional cost/

Output Amplitude

Specs & Docs

• Source Code
• Documentation
• Design Files
