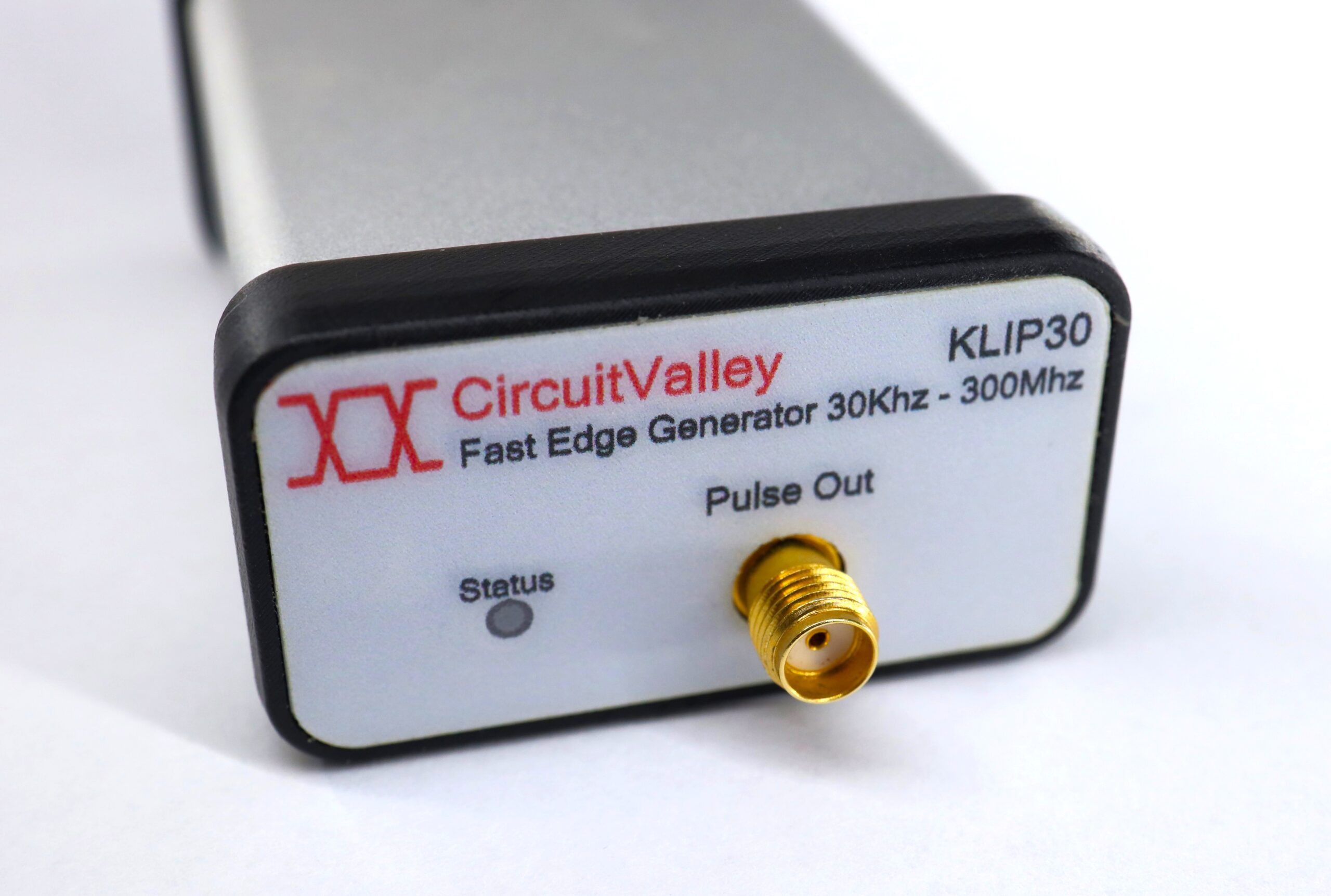

KLIP30 USB Programmable 30ps Fast Pulse Generator
- Programmable DC Coupled Output with 50mV to 1300mV Signal Amplitude with 50Ω Output

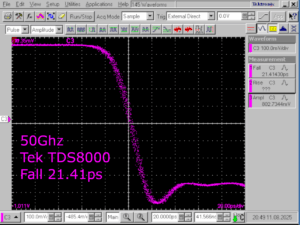

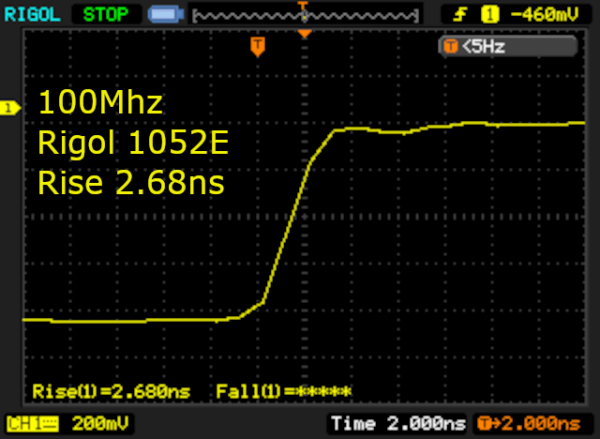

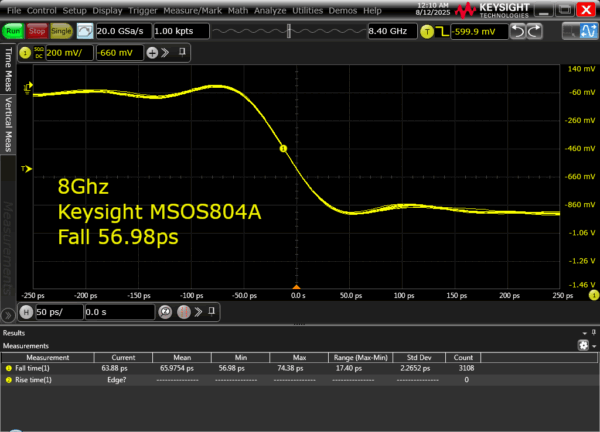

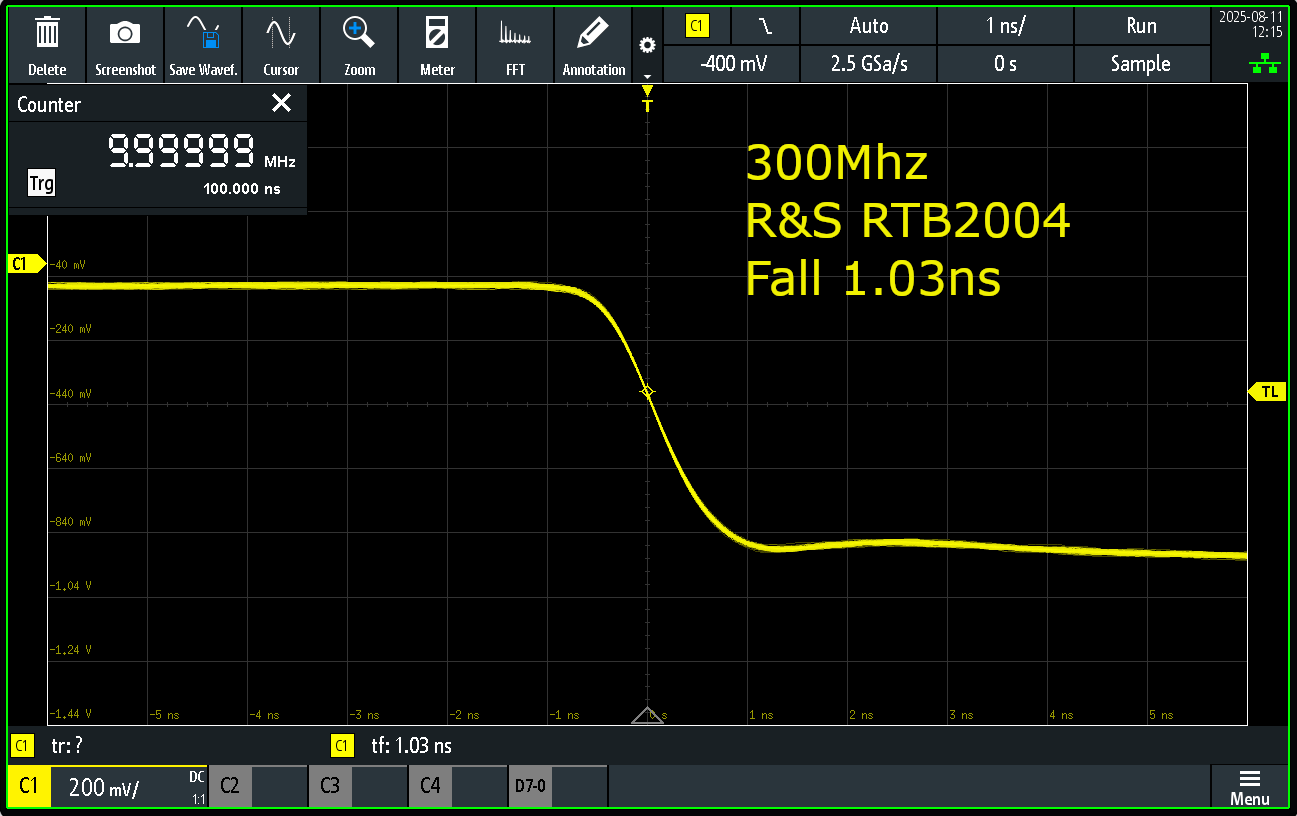

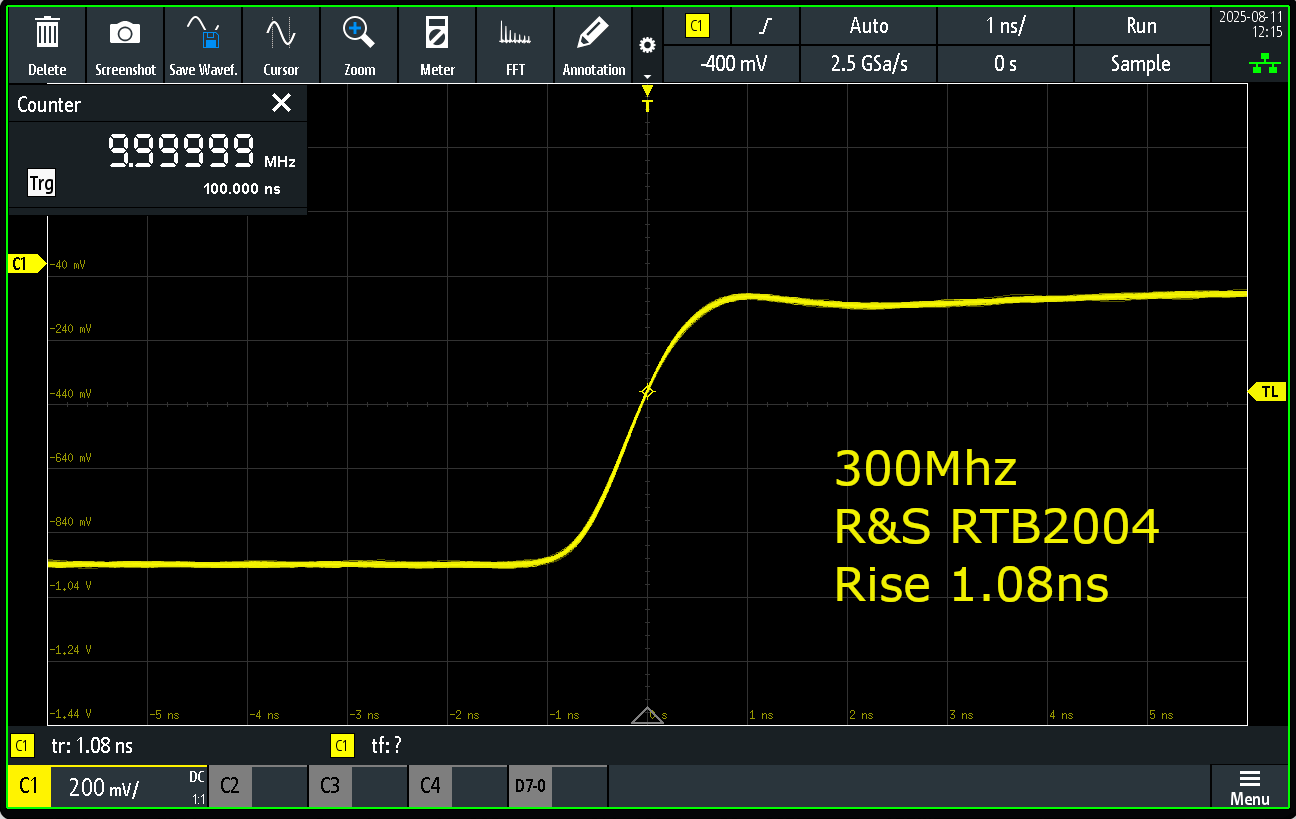

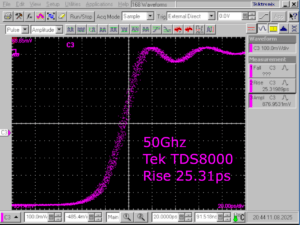

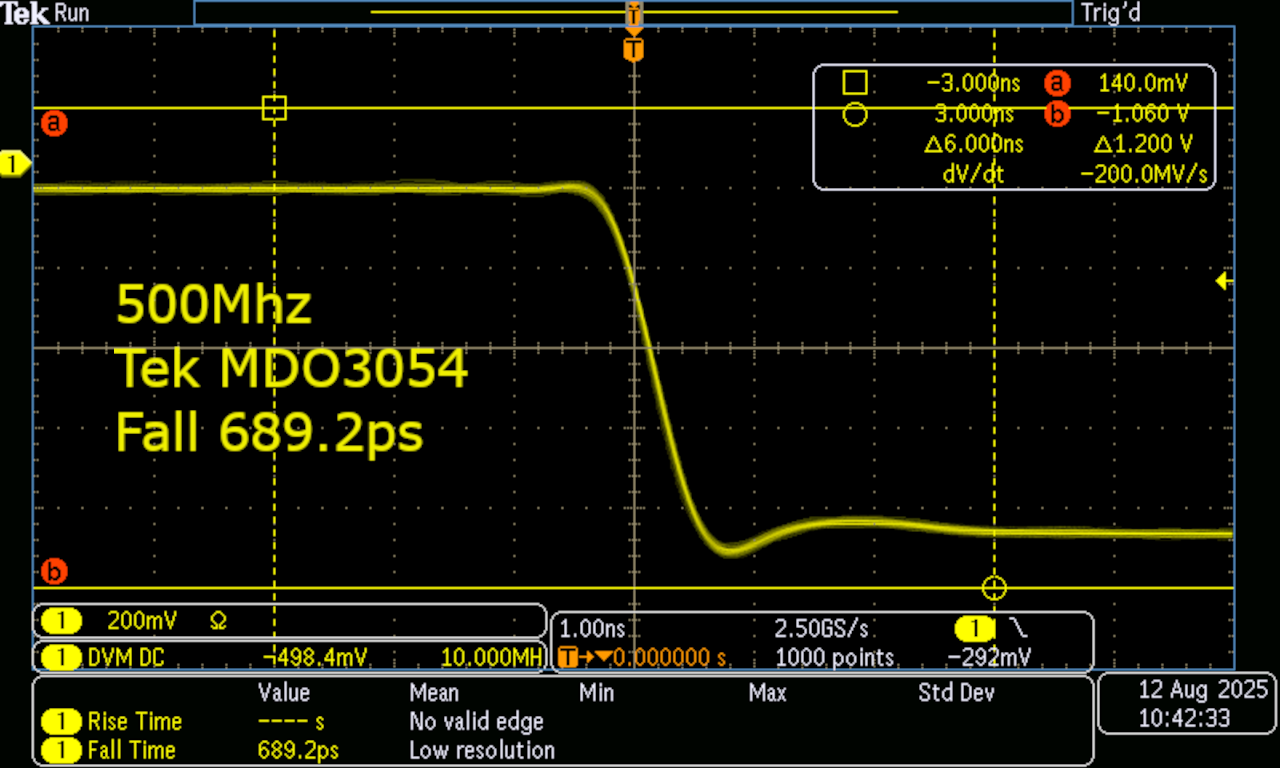

- Very Fast ~20ps Falling Time and 30ps Rise time with Uncertainties + 1.6ps to – 1.8ps
- Programmable output frequency PLL Supports 30Khz to 300Mhz
- Duty Cycle of 50%
- Ships default with 10Mhz 800mVpp output and Trigger output enabled
- USB Programmable Stores configuration in High endurance flash.
- Driver free USB over USB HID, Like keyboard or mouse, no special permissions or driver needed.
- Top Quality 27Ghz SMA Output Connector
- Aux In/Out Supports output AC Coupled 1.8Vpp output and input
- Support External Reference Input and Output For trigger and Sync between Multiple devices/ GPSDO
- Internal Oscillator 25ppm Initial accuracy and 2.5ppm/year ageing Stability, External Reference Input Supported 10Mhz to 25Mhz.

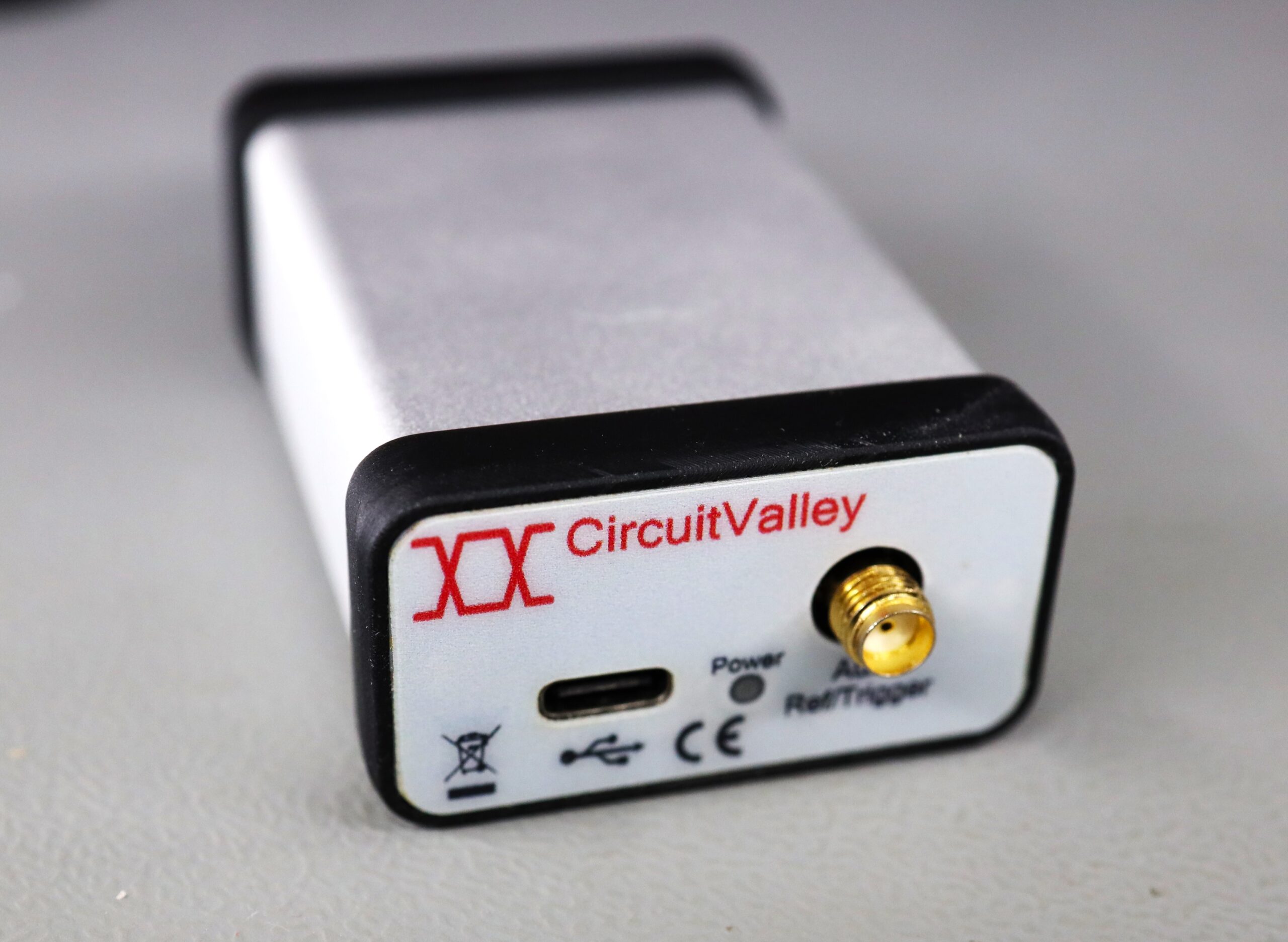

- USB C Power/ Configuration Communication , consumes ~250mA on 5V USB

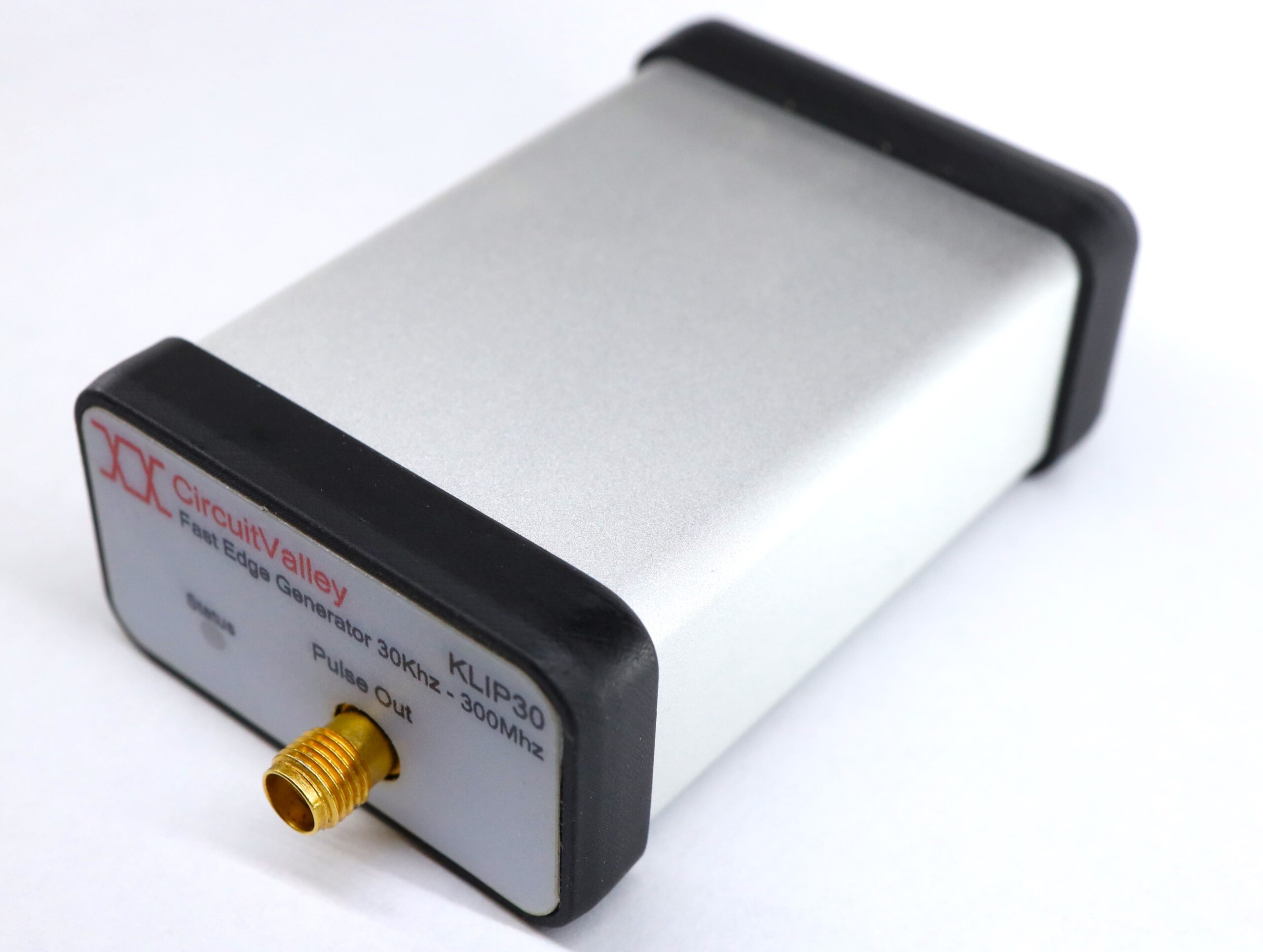

- Extruded Aluminium Enclosure. Device fully user serviceable with support.
- Crossplatform Configuration GUI Application , Supports Windows, Linux, MacOS

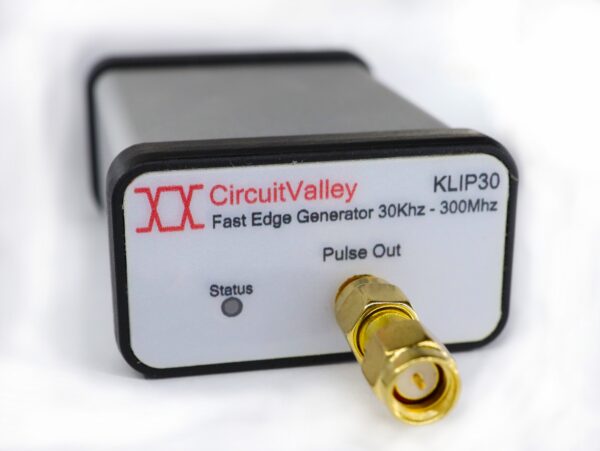

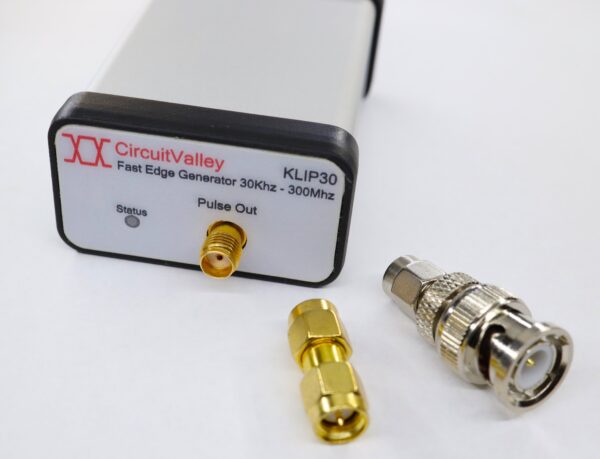

- Deliverables, Pulse Generator Device, SMA Male to SMA Male Adapter, SMA Male to BNC Male Adapter, Individually measurement report
Latest Application V1.2.0.81 Download here for Windows and Linux
Download Windows Configuration Application
Download Linux Configuration Application Appimage
