CHC5 camera module with the Sony IMX565 (12.3 MP, approx. 1/1.1″, 2.74 µm, global shutter) – 12.3 mp global shutter, large sensor. Use it with a Raspberry Pi, NVIDIA Jetson or other single-board computer through the included adapter, or inside the CHC5 FPGA camera.
Specifications
| Sensor | Sony IMX565 |
|---|---|
| Shutter | Global shutter |
| Optical format | approx. 1/1.1″ |
| Resolution | 4096 × 3000 (12.3 MP) |
| Pixel size | 2.74 µm |
| Color / Mono | Color or monochrome (choose at order) |
| Sensor max. frame rate | 42 fps @ 12.3 MP (sensor limit; see CHC5 ISP throughput) |
| Pixel bit depth | RAW8 / RAW10 / RAW12 |
| HDR | Dual-ADC HDR |
| Lens mount | M42 Low Flange included – free swap to C, CS, S (M12), M42 Low Flange, M42 Standard, Canon RF, Sony E or MFT |
| Lens | Not included – use any lens that fits the chosen mount |
| Connection | Standard Raspberry Pi / NVIDIA Jetson / SBC MIPI camera connector (via included adapter) or CHC5 camera |
| Raspberry Pi boards | Raspberry Pi 5, Raspberry Pi 4 Model B, Raspberry Pi 3 Model B/B+, Raspberry Pi Zero 2 W, Raspberry Pi Compute Module 5 (CM5), Raspberry Pi Compute Module 4 (CM4) |
| NVIDIA Jetson boards | NVIDIA Jetson AGX Orin, NVIDIA Jetson Orin NX, NVIDIA Jetson Orin Nano, NVIDIA Jetson Xavier NX, NVIDIA Jetson Nano |
What’s in the box

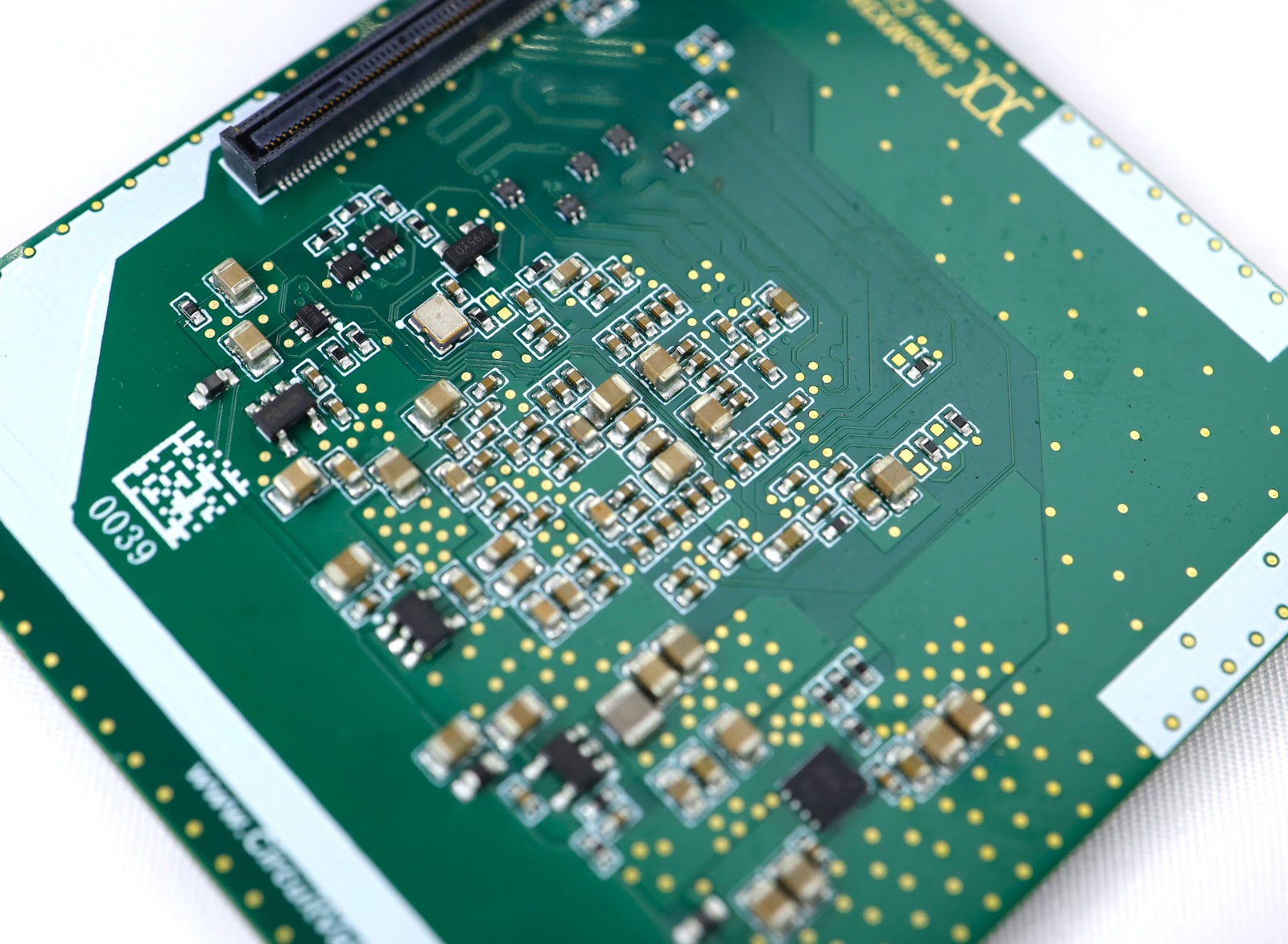

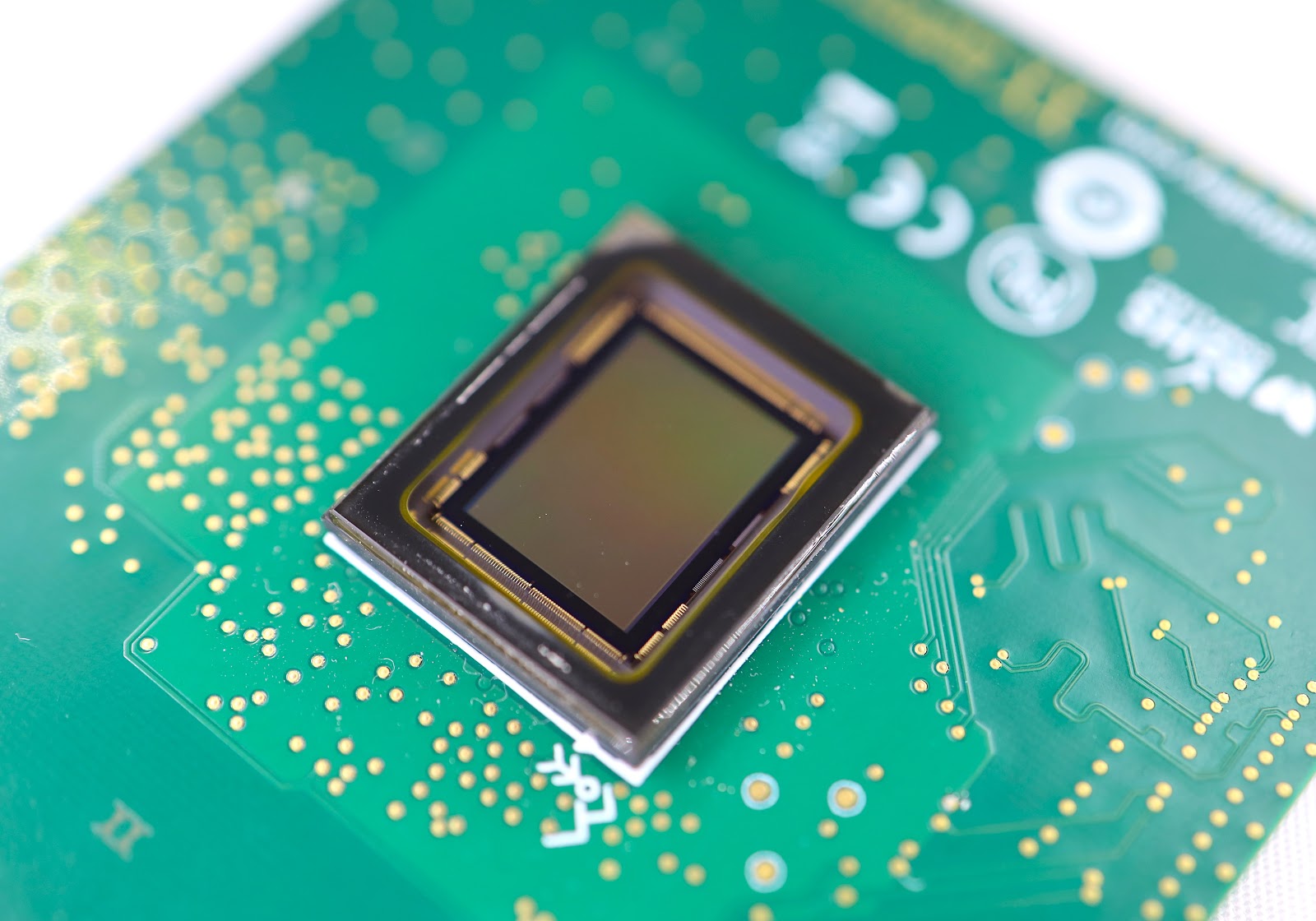

- Sony IMX565 sensor board (color or mono)
- Aluminium lens mount (M42 Low Flange or your choice)
- Sensor to Raspberry Pi / NVIDIA Jetson adapter kit
- Aluminium lens mount core
Documentation & Open Source
- CHC5 on GitHub – hardware files, FPGA project and software
- Sensor comparison
- CHC5 system overview
- Lens mounts and sensor support
- Software architecture (GigE Vision, USB3 Vision, web UI)
- FPGA ISP architecture
