Name: OX08B40 8.3MP 140 dB HDR Camera Module for Raspberry Pi &amp; NVIDIA Jetson
SKU: CHC5-MOD-OX08B40
Availability: BackOrder

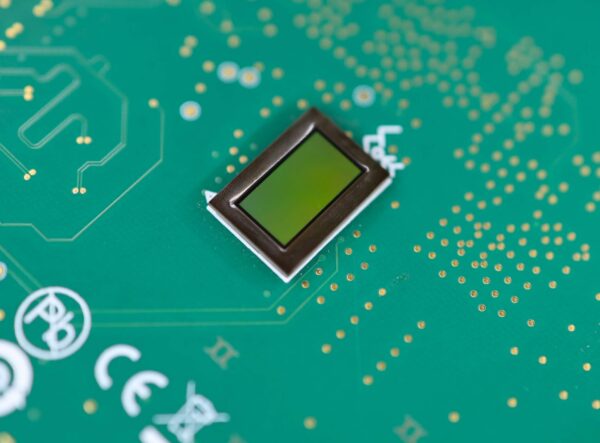

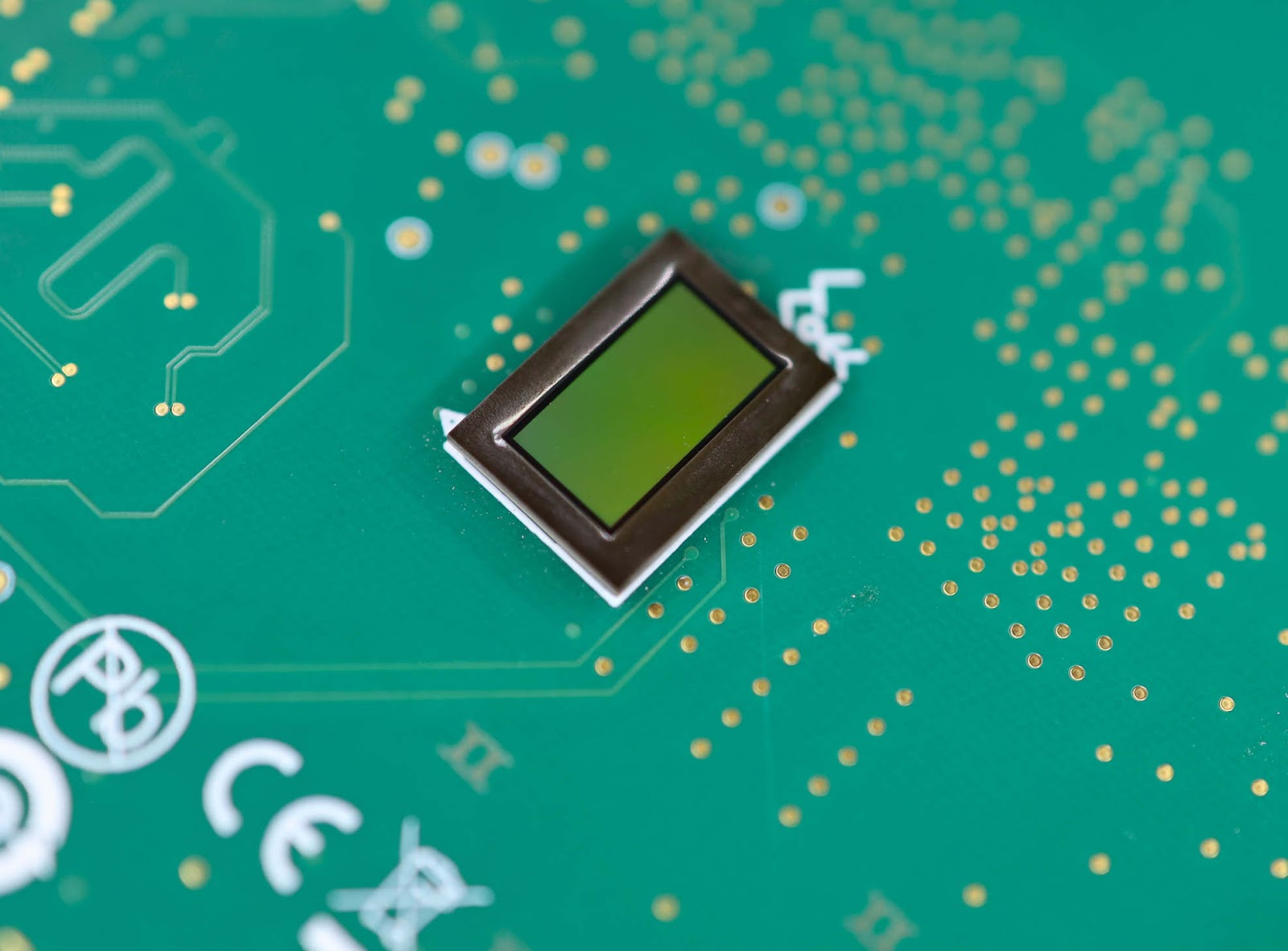

CHC5 camera module with the OmniVision OX08B40 (8.3 MP, 1/1.73″, 2.1 µm, rolling shutter) – 140 db extreme dynamic range, pwl hdr, automotive sensor. Use it with a Raspberry Pi, NVIDIA Jetson or other single-board computer through the included adapter, or inside the CHC5 FPGA camera.

Specifications

Sensor	OmniVision OX08B40
Shutter	Rolling shutter
Optical format	1/1.73″
Resolution	3840 × 2160 (8.3 MP)
Pixel size	2.1 µm
Color / Mono	Color
Sensor max. frame rate	36 fps @ 4K (24-bit HDR) (sensor limit; see CHC5 ISP throughput)
Pixel bit depth	up to 24-bit HDR
HDR	4-capture HDR, 140 dB, PWL
Lens mount	C-Mount included – free swap to C, CS, S (M12), M42 Low Flange, M42 Standard, Canon RF, Sony E or MFT
Lens	Not included – use any lens that fits the chosen mount
Connection	Standard Raspberry Pi / NVIDIA Jetson / SBC MIPI camera connector (via included adapter) or CHC5 camera
Raspberry Pi boards	Raspberry Pi 5, Raspberry Pi 4 Model B, Raspberry Pi 3 Model B/B+, Raspberry Pi Zero 2 W, Raspberry Pi Compute Module 5 (CM5), Raspberry Pi Compute Module 4 (CM4)
NVIDIA Jetson boards	NVIDIA Jetson AGX Orin, NVIDIA Jetson Orin NX, NVIDIA Jetson Orin Nano, NVIDIA Jetson Xavier NX, NVIDIA Jetson Nano

What’s in the box

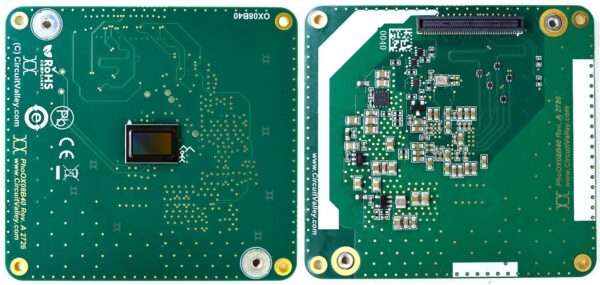

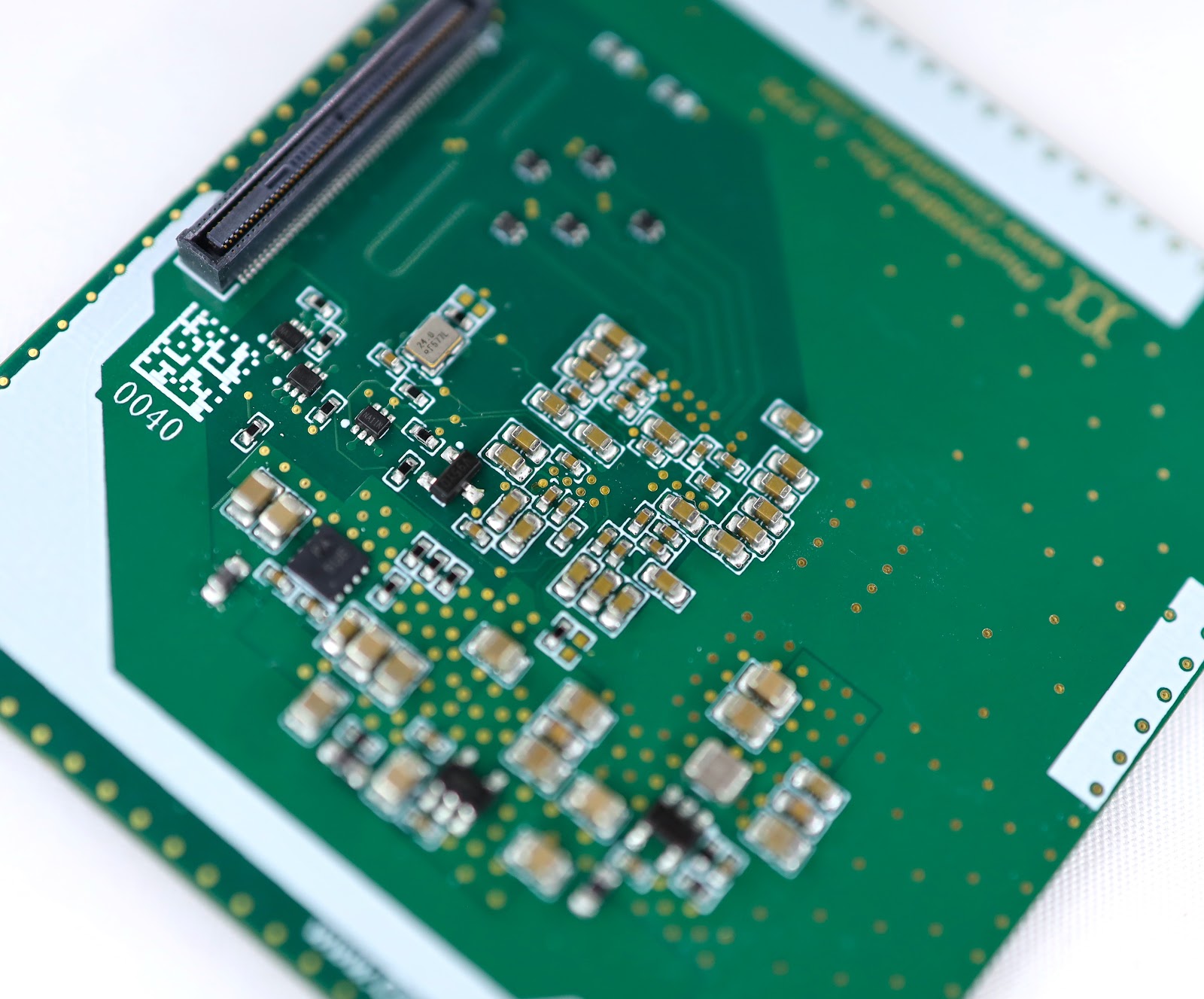

OmniVision OX08B40 sensor board
Aluminium lens mount (C-Mount or your choice)
Sensor to Raspberry Pi / NVIDIA Jetson adapter kit
Aluminium lens mount core

Documentation & Open Source

CHC5 on GitHub – hardware files, FPGA project and software
Sensor comparison
CHC5 system overview
Lens mounts and sensor support
Software architecture (GigE Vision, USB3 Vision, web UI)
FPGA ISP architecture

Sensor	OmniVision OX08B40
Resolution	8.3 MP
Shutter	Rolling shutter
Optical format	1/1.73"
Mount	C-Mount, Canon RF, CS-Mount, M42 Low Flange, M42 Standard, Micro Four Thirds (MFT), S-Mount (M12), Sony E

Hersteller / Manufacturer:
…

Verantwortliche Person in der EU / Responsible person in the EU: der Hersteller (siehe oben) / the manufacturer (see above)

Produkt / Product: OX08B40 8.3MP 140 dB HDR Camera Module for Raspberry Pi & NVIDIA Jetson — Art.-Nr. / SKU: CHC5-MOD-OX08B40

WEEE-Reg.-Nr.: DE90905884

Sicherheitshinweise / Safety information:

Elektronische Baugruppe für technisch versierte Anwender – kein Spielzeug. Außerhalb der Reichweite von Kindern aufbewahren.
Electronic assembly for technically skilled users – not a toy. Keep out of the reach of children.
Empfindlich gegen elektrostatische Entladung (ESD): nur an einem geerdeten Arbeitsplatz handhaben.
Sensitive to electrostatic discharge (ESD): handle only at a grounded workstation.
Nur mit der angegebenen Versorgungsspannung und geeigneten Netzteilen betreiben; Ein- und Ausgänge nicht mit falscher Spannung beschalten.
Operate only with the specified supply voltage and suitable power supplies; do not apply wrong voltages to inputs or outputs.
Nicht in feuchter oder nasser Umgebung verwenden und vor Überhitzung schützen.
Do not use in damp or wet environments; protect from overheating.
Entsorgung: nicht in den Hausmüll – bei einer Sammelstelle für Elektroaltgeräte abgeben.
Disposal: do not put in household waste – take to a collection point for waste electrical equipment.
