FPGA FMC LPC Breakout Board

What is it?

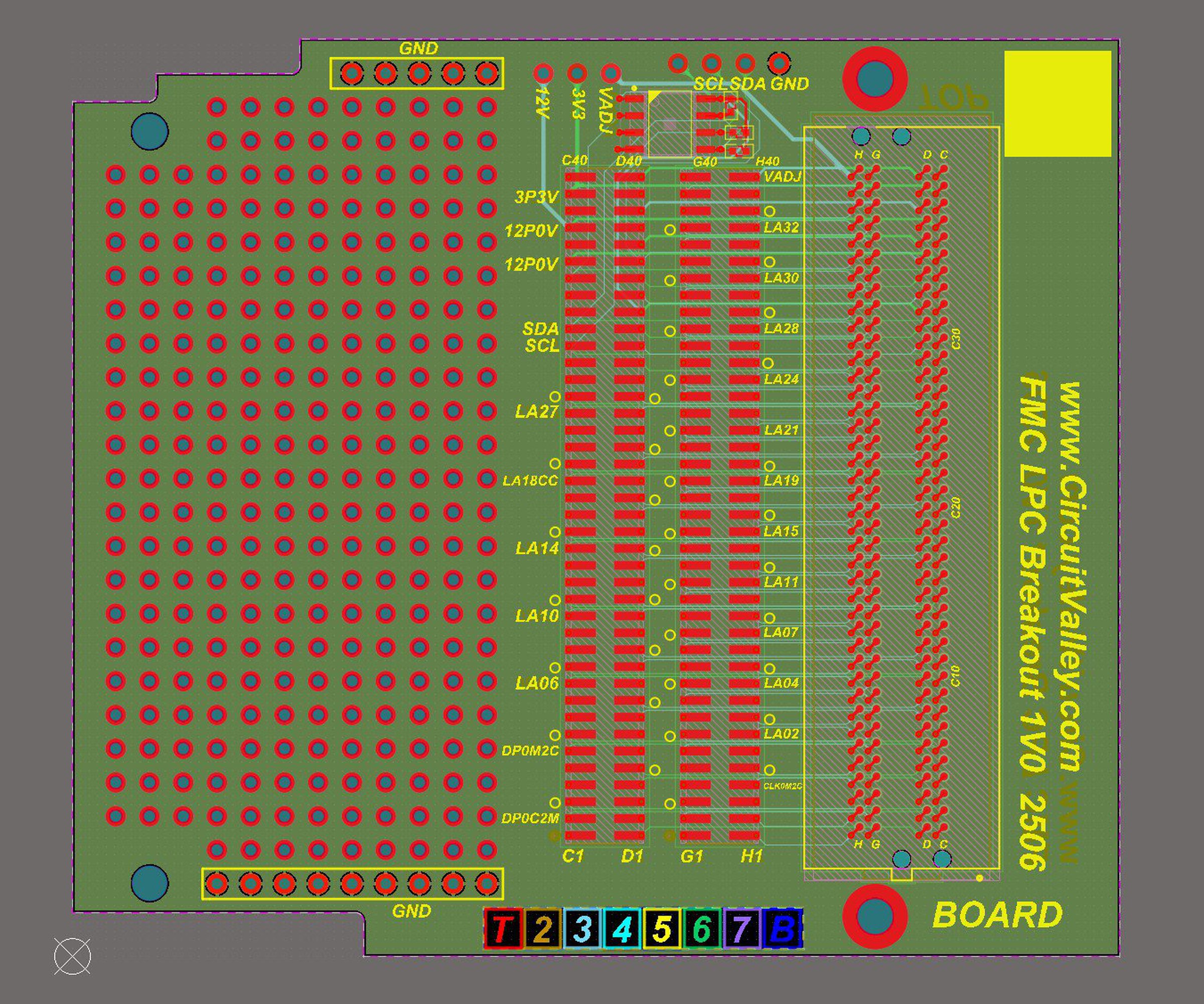

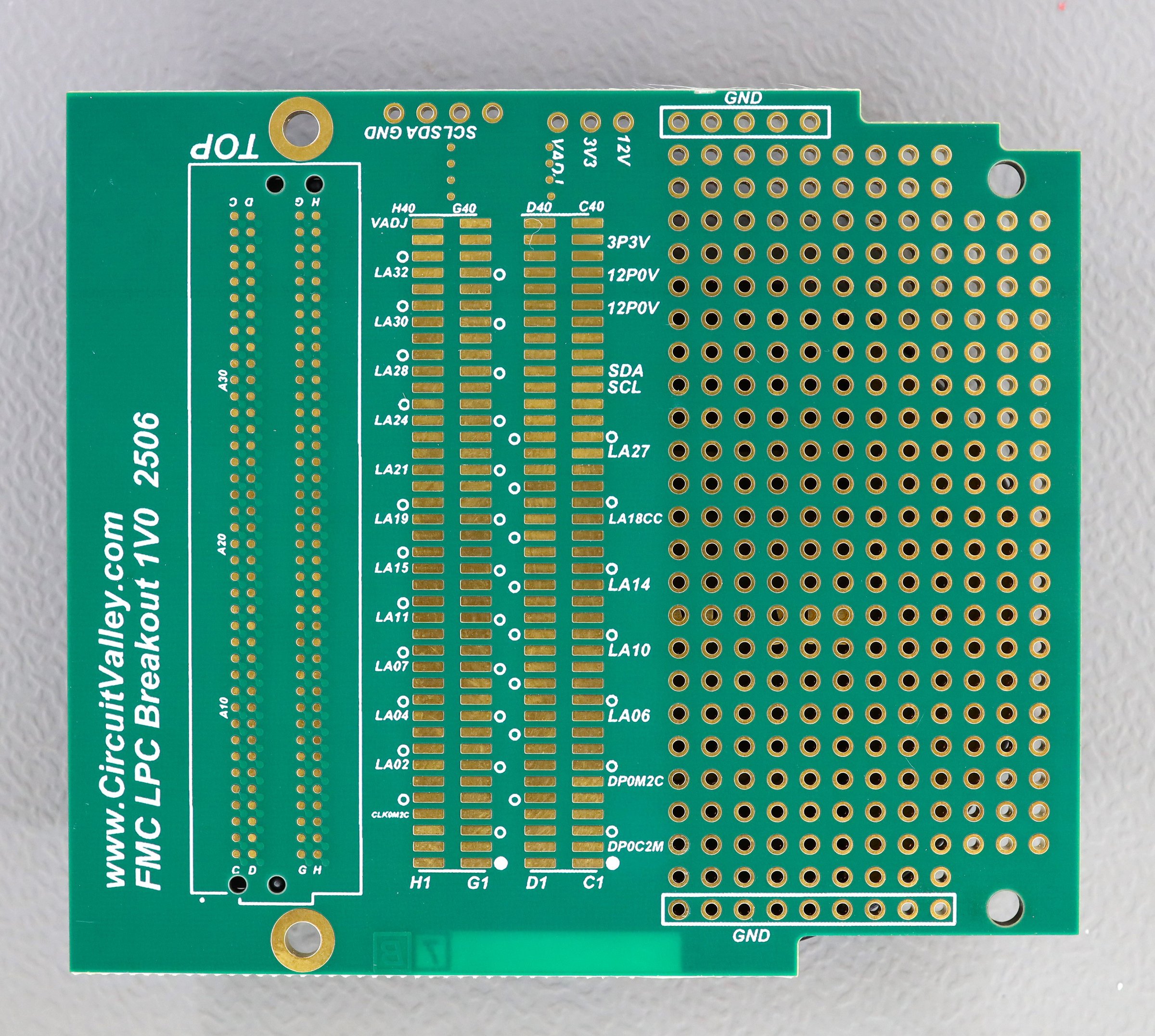

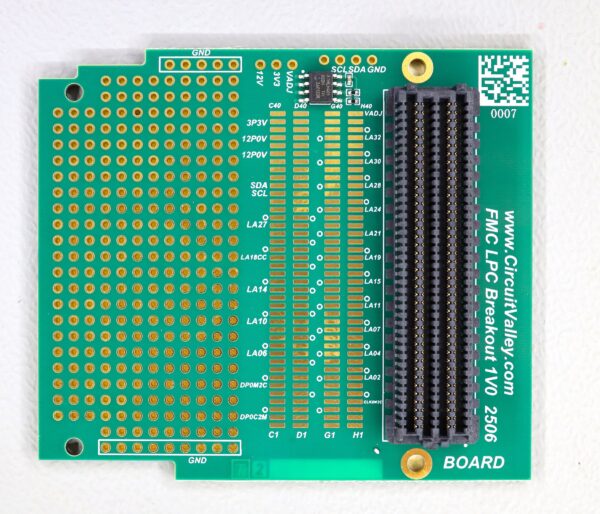

Breakout board PCB for FMC Connector which are widely used on Xilinx High End FPGA board. Breakout all the LPC signal Pins, Including High speed pins. ANSI/VITA 57.1 compliant

Why did you make it?

Normal FPGA FMC Board comes from big manufacturer, Availability of such board is very very rare.

This board allow you to do rapid prototyping.

Mechanically VITA57.1 Compliant so Fits all FPGA board with FMC HPC or FMC LPC connectors

What makes it special?

Its a open source board that is VITA57.1 Compliant Has EEPROM to Configure voltages

Specs & Docs

• Source Code
• Documentation
• Design Files
