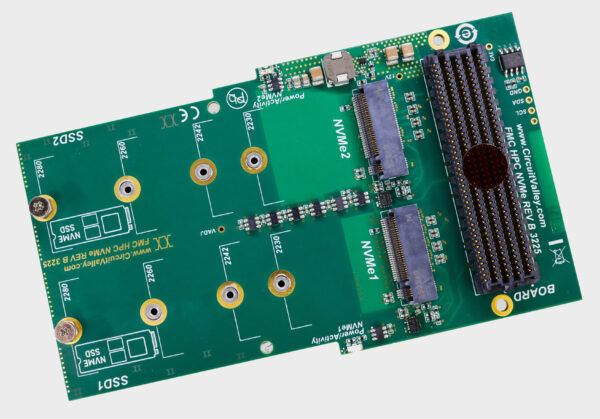

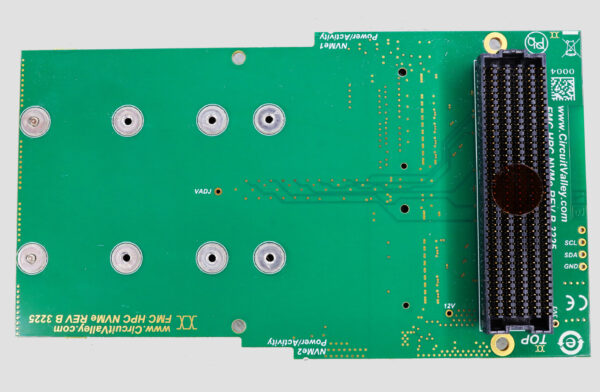

FMC NVMe SSD Drive, FPGA HPC PCIe M.2 Carrier Adapter, FPGA Drive Gen4

249,99 €
In stock – ships within 1–2 working days

FMC M.2 NVMe SSD Drive Carrier Board Designed by circuitvalley in Germany

SKU: FMC-NVME-M2
Category:

What is it?

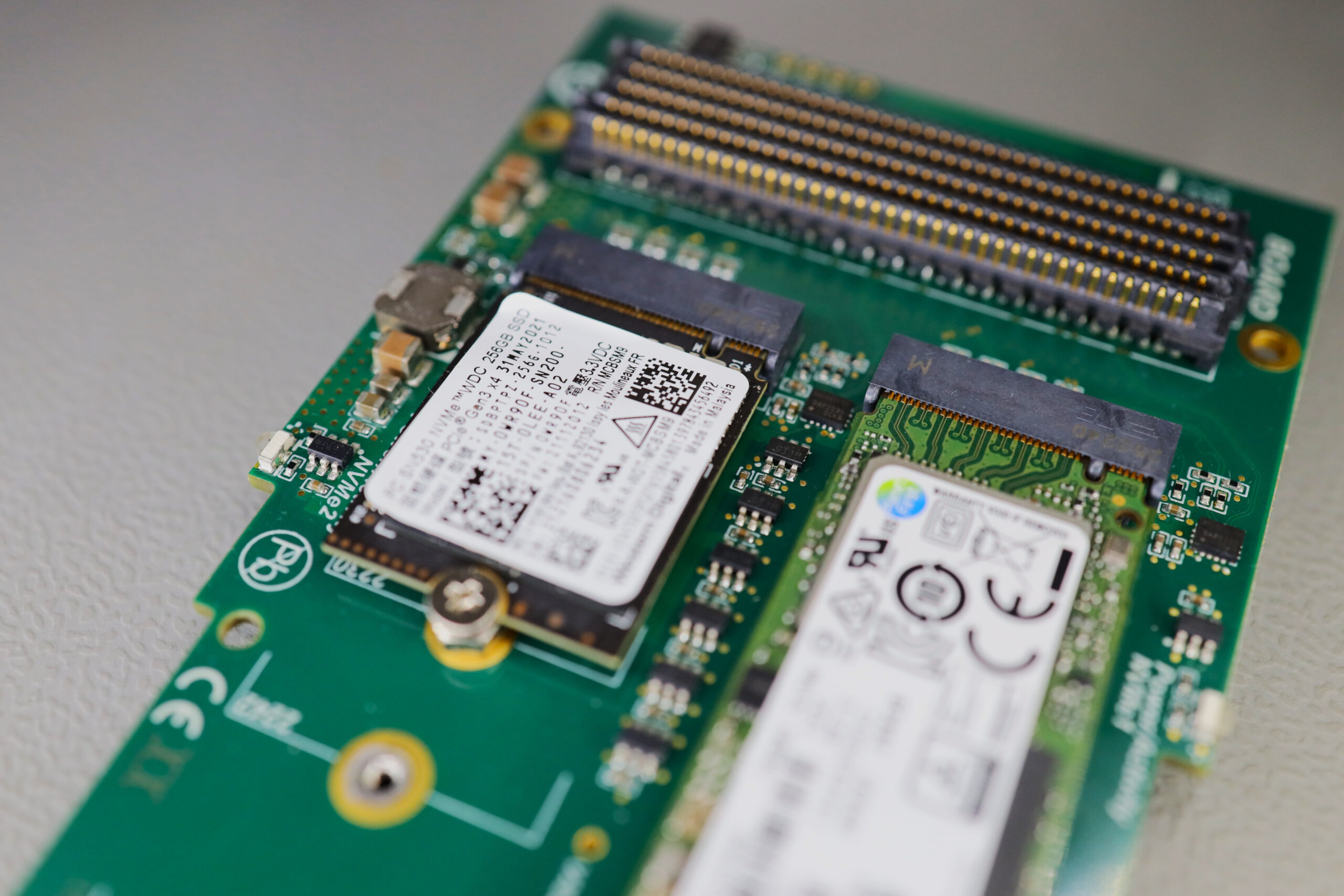

  • FPGA FMC HPC M.2 Carrier board for  NVMe SSD M.2 M Key and Other M.2 m-key card, such as WiFi or AI Accelerator
  • PCIe Gen4 X4 on both of the slots
  • Fully Supported By Free xilinx PCIe IP
  • Works with Free Vivado Edition
  • High Quality 8 Layer Board with Controlled Stripline routing.
  • Independently Power both both Slots Allow Full potential.

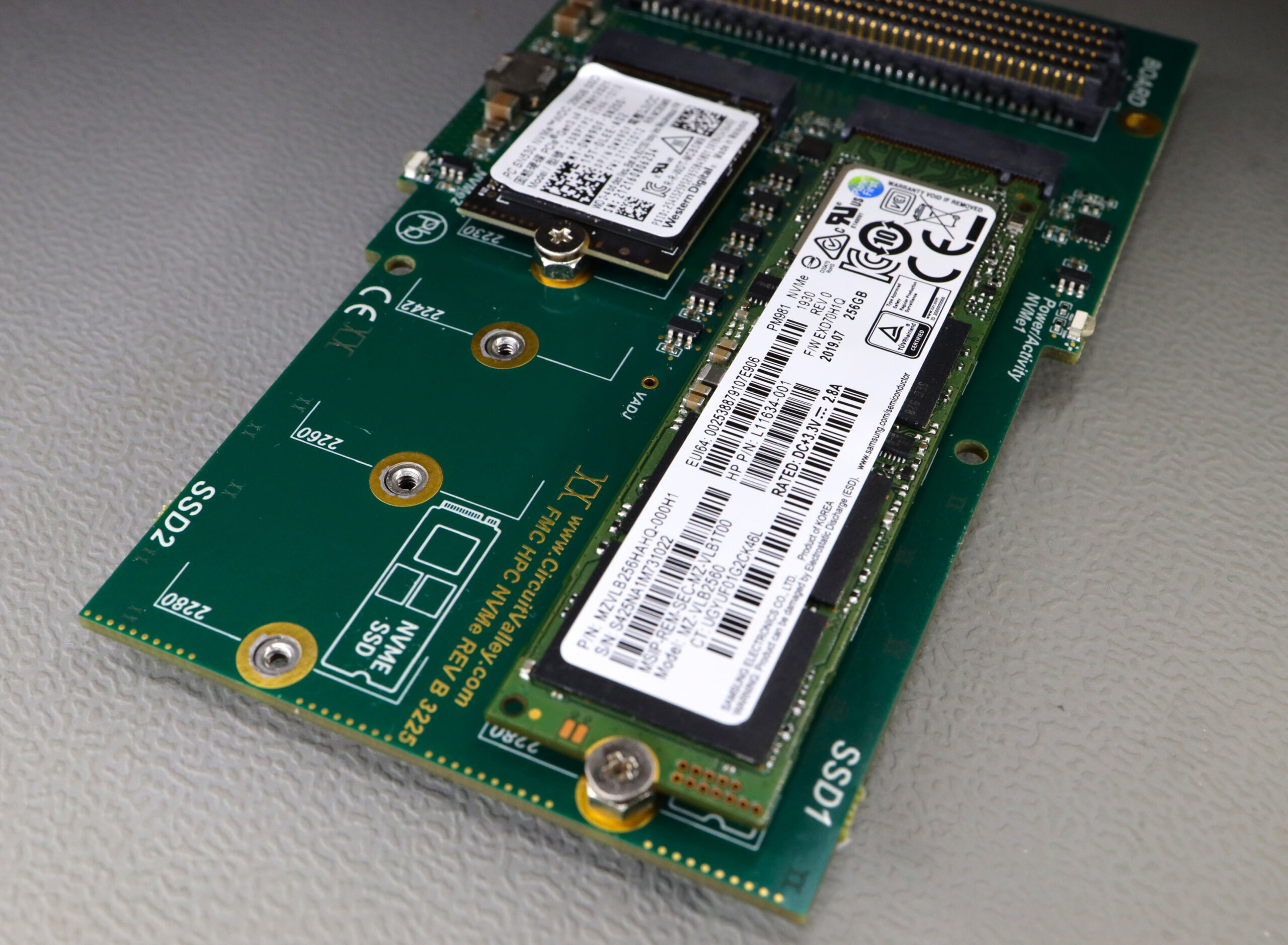

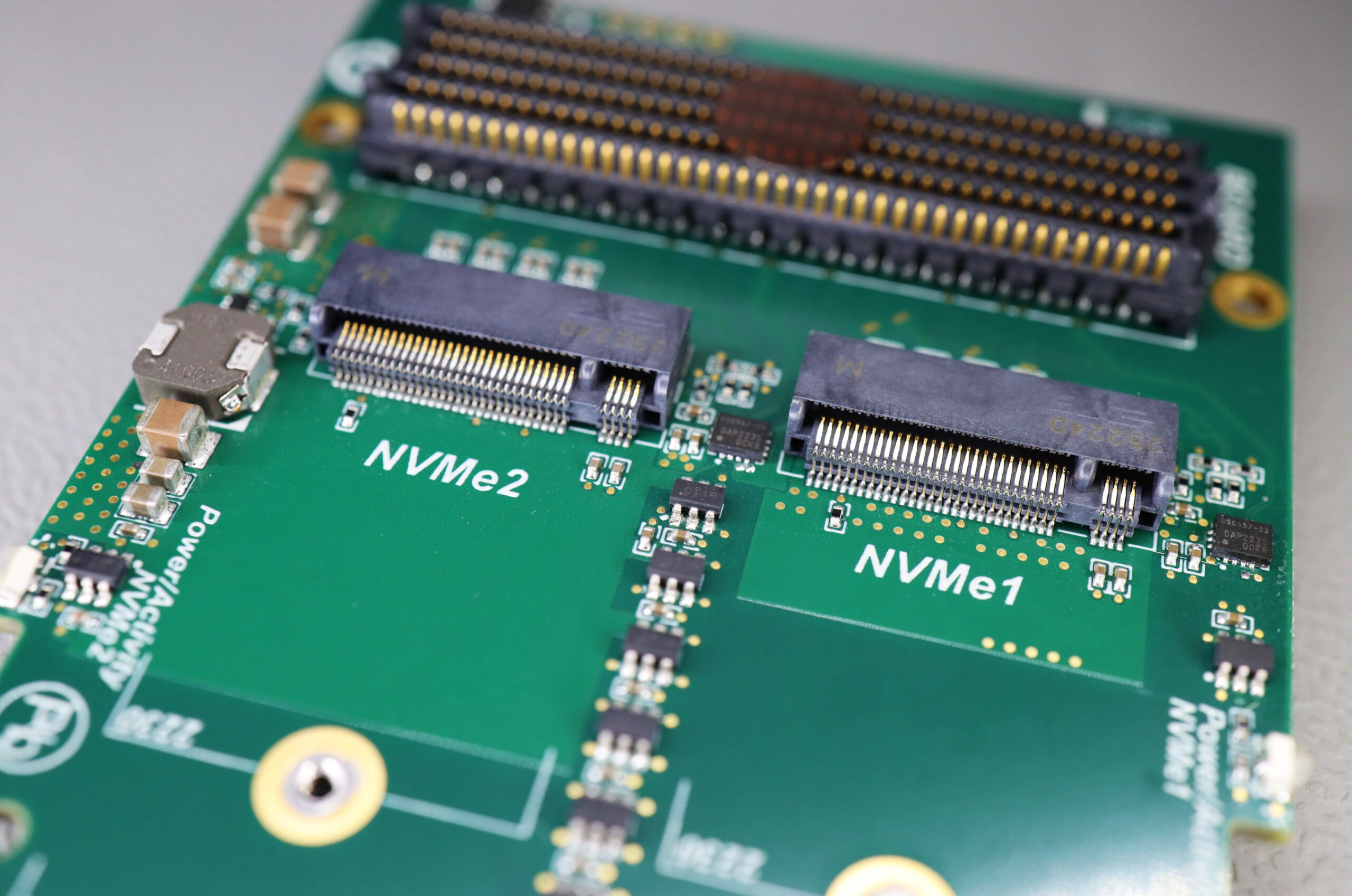

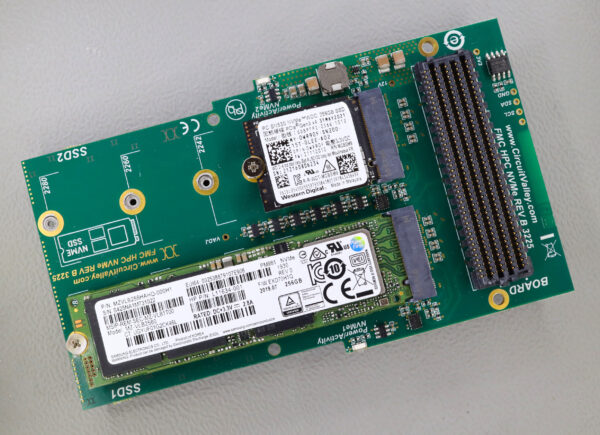

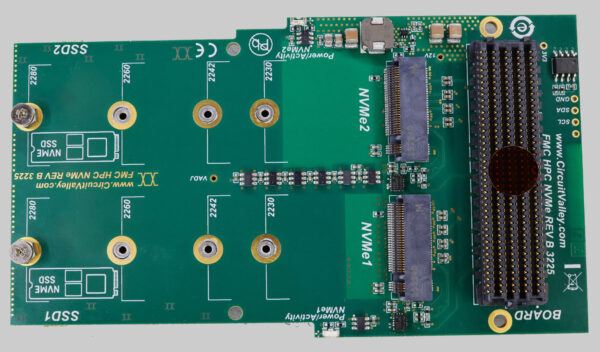

  • Two M Key slots with 4 Different Sizes.

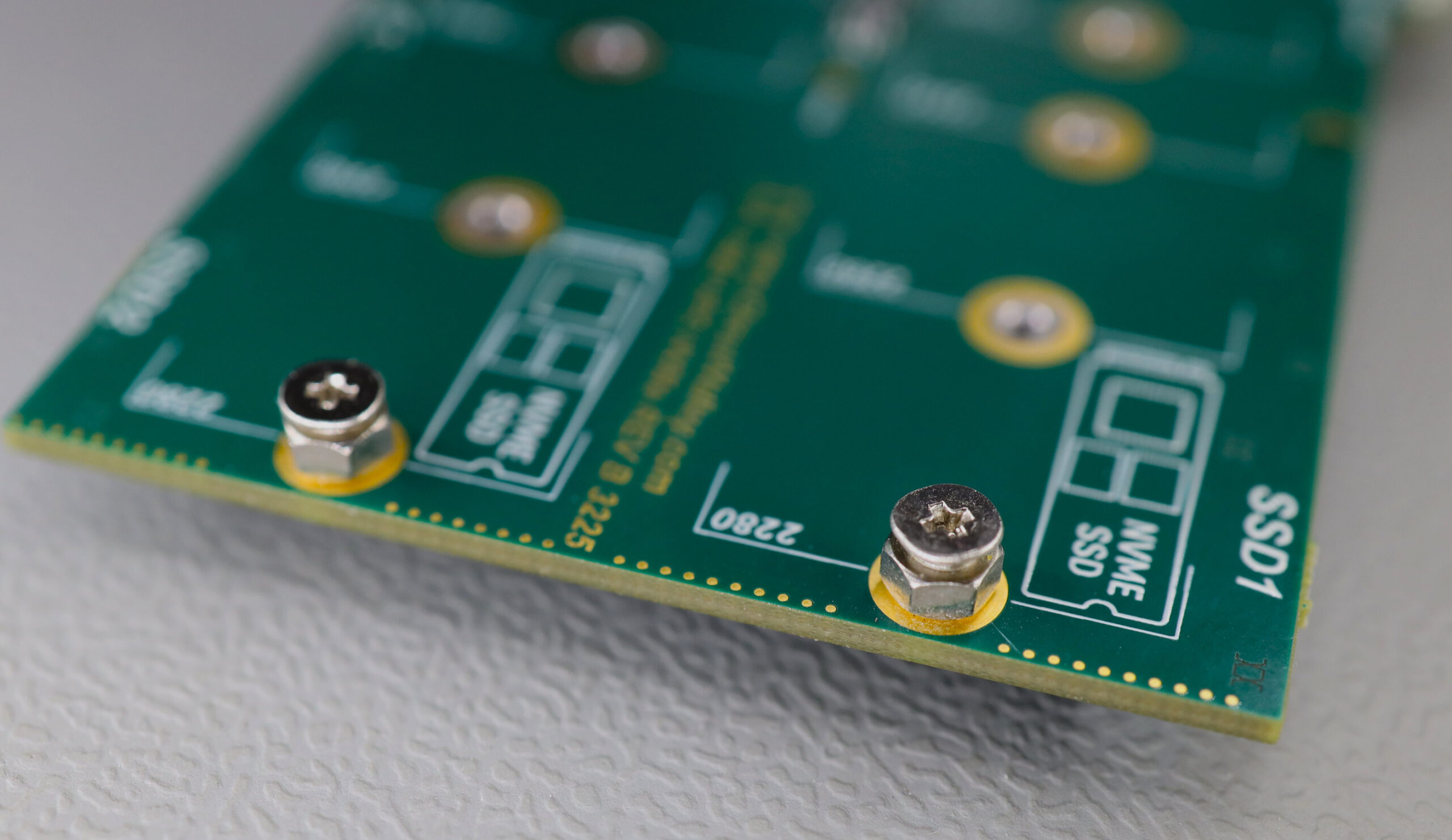

  • Supports 2280, 2260, 2242, 2230 M.2 Sizes.
  • Power and Activity LED indication

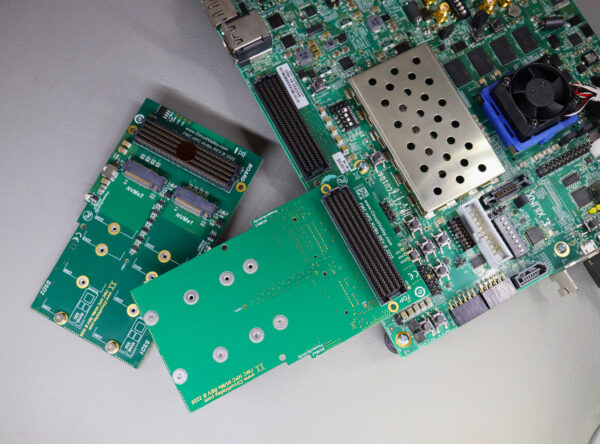

  • Supported by All Xilinx boards with Fully HPC connectors.

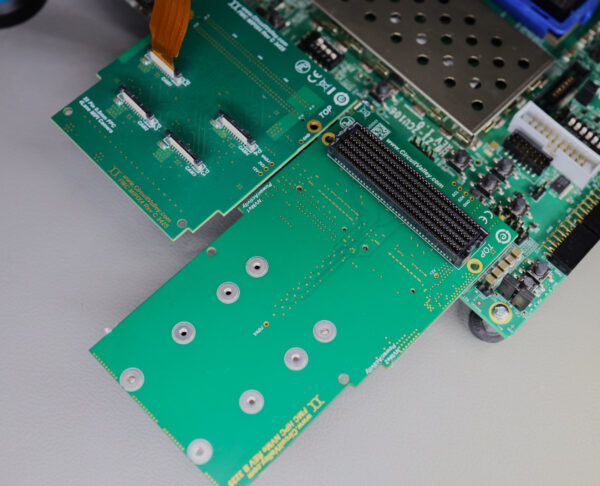

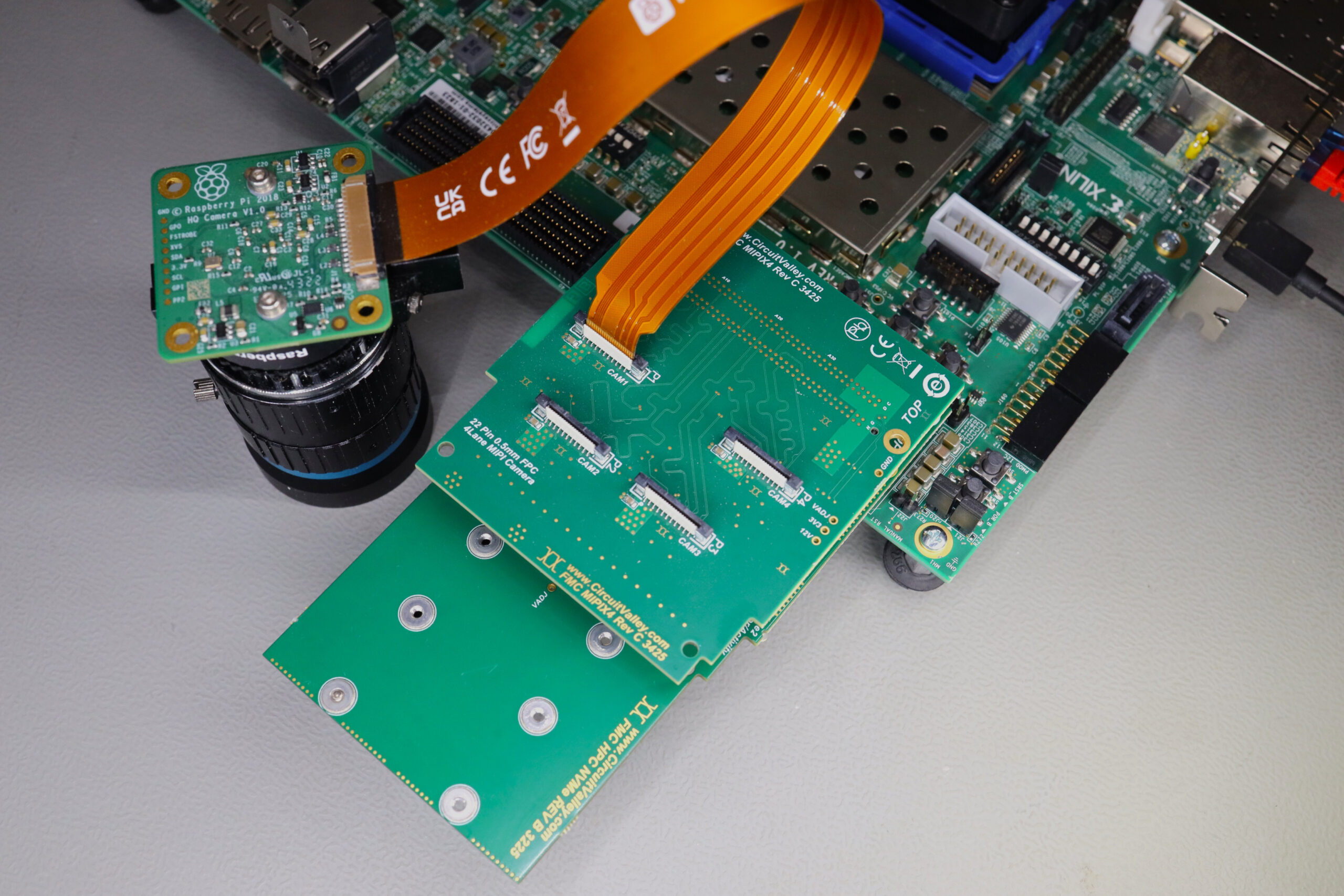

  • FMC Stackable with all unused signal pass through, Can stack more boards on top.
  • FMC HPC ANSI/VITA 57.1 compliant.
  • Board is VITA57.1 Compliant Has EEPROM to Configure voltages to support High end FPGA VADJ
  • Compatible with FMC+ boards
  • 7 Series KC705, VC707 VC709 VC706
  • Zynq ultrascle+ ZCU104, ZCU106, ZCU111, ZCU208
  • Versal VCK190, VCK280, VHK158, VMK180, VPK180

Specs & Docs

Hersteller / Manufacturer:
…

Verantwortliche Person in der EU / Responsible person in the EU: der Hersteller (siehe oben) / the manufacturer (see above)

Produkt / Product: FMC NVMe SSD Drive, FPGA HPC PCIe M.2 Carrier Adapter, FPGA Drive Gen4 — Art.-Nr. / SKU: FMC-NVME-M2

WEEE-Reg.-Nr.: DE90905884

Sicherheitshinweise / Safety information:

  • Elektronische Baugruppe für technisch versierte Anwender – kein Spielzeug. Außerhalb der Reichweite von Kindern aufbewahren.
    Electronic assembly for technically skilled users – not a toy. Keep out of the reach of children.
  • Empfindlich gegen elektrostatische Entladung (ESD): nur an einem geerdeten Arbeitsplatz handhaben.
    Sensitive to electrostatic discharge (ESD): handle only at a grounded workstation.
  • Nur mit der angegebenen Versorgungsspannung und geeigneten Netzteilen betreiben; Ein- und Ausgänge nicht mit falscher Spannung beschalten.
    Operate only with the specified supply voltage and suitable power supplies; do not apply wrong voltages to inputs or outputs.
  • Nicht in feuchter oder nasser Umgebung verwenden und vor Überhitzung schützen.
    Do not use in damp or wet environments; protect from overheating.
  • Entsorgung: nicht in den Hausmüll – bei einer Sammelstelle für Elektroaltgeräte abgeben.
    Disposal: do not put in household waste – take to a collection point for waste electrical equipment.
