Name: FPGA FMC MIPI Emulator TX/RX Breakout Board with FMC LPC
SKU: FMC-MIPI-EMU
Availability: InStock

This breakout Give you 3x MIPI Connections using just HMC LPC Pins.
Board Specifically Designed for MIPI Emulation. Has Very special Powered and 2x Passive connector.
Board is specifically for MIPI TX/RX for DSI Display and Camera, While Also has Dedicated Emulation Connector to Emulate Camera RX and Display Emulation.
Current limited Active Powered MIPI Connector.

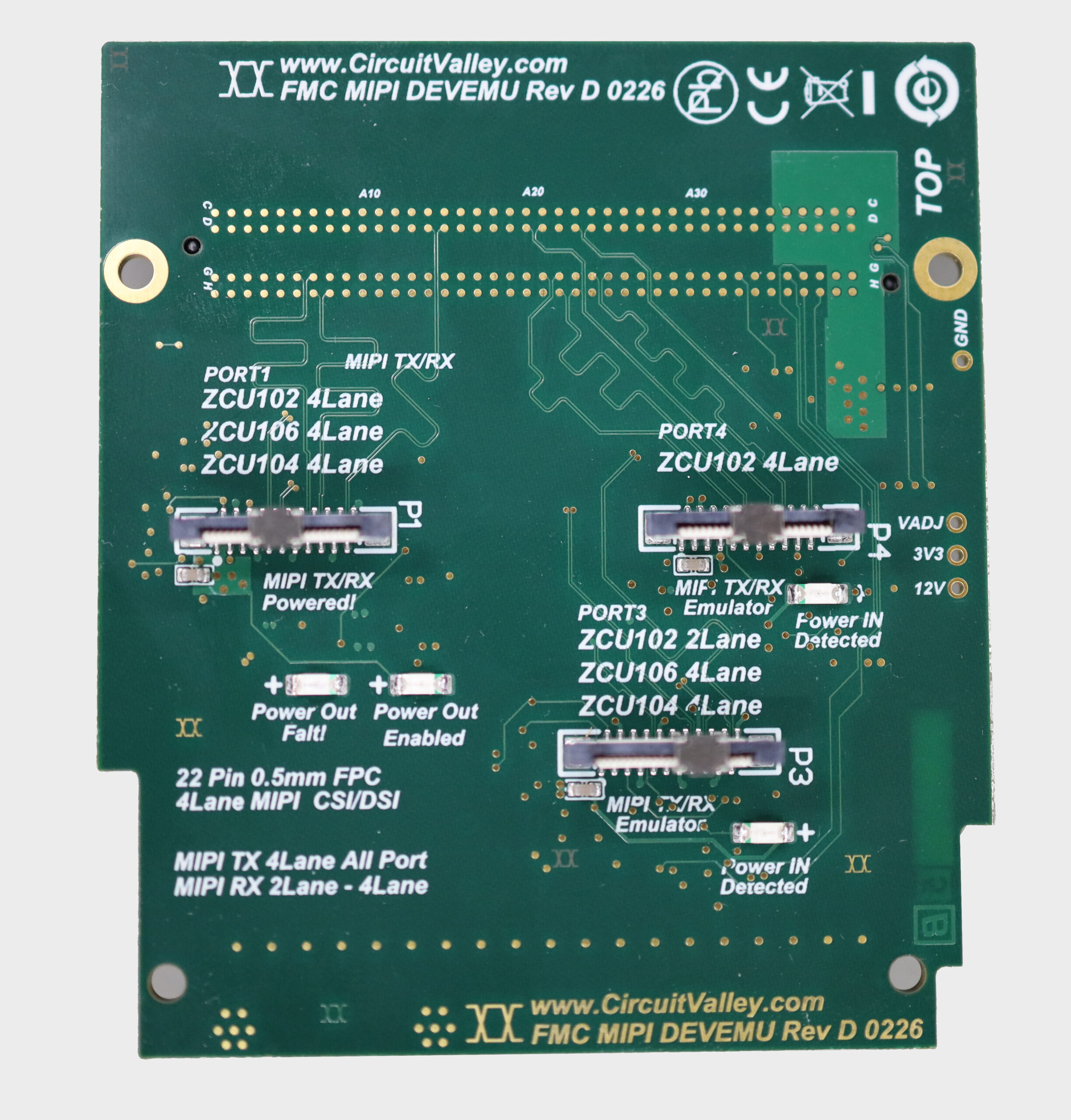

Passive MIPI Connector for emulation with Powered Detect LED Indication.
This Board Has 3x 22Pin 0.5mm Pitch 4Lane MIPI Connector, Same As Raspberry Pi 5 onwards.
Compatible to all Raspberry Style Cameras, 2 Lane and 4Lane cameras and displays for Both TX and RX.

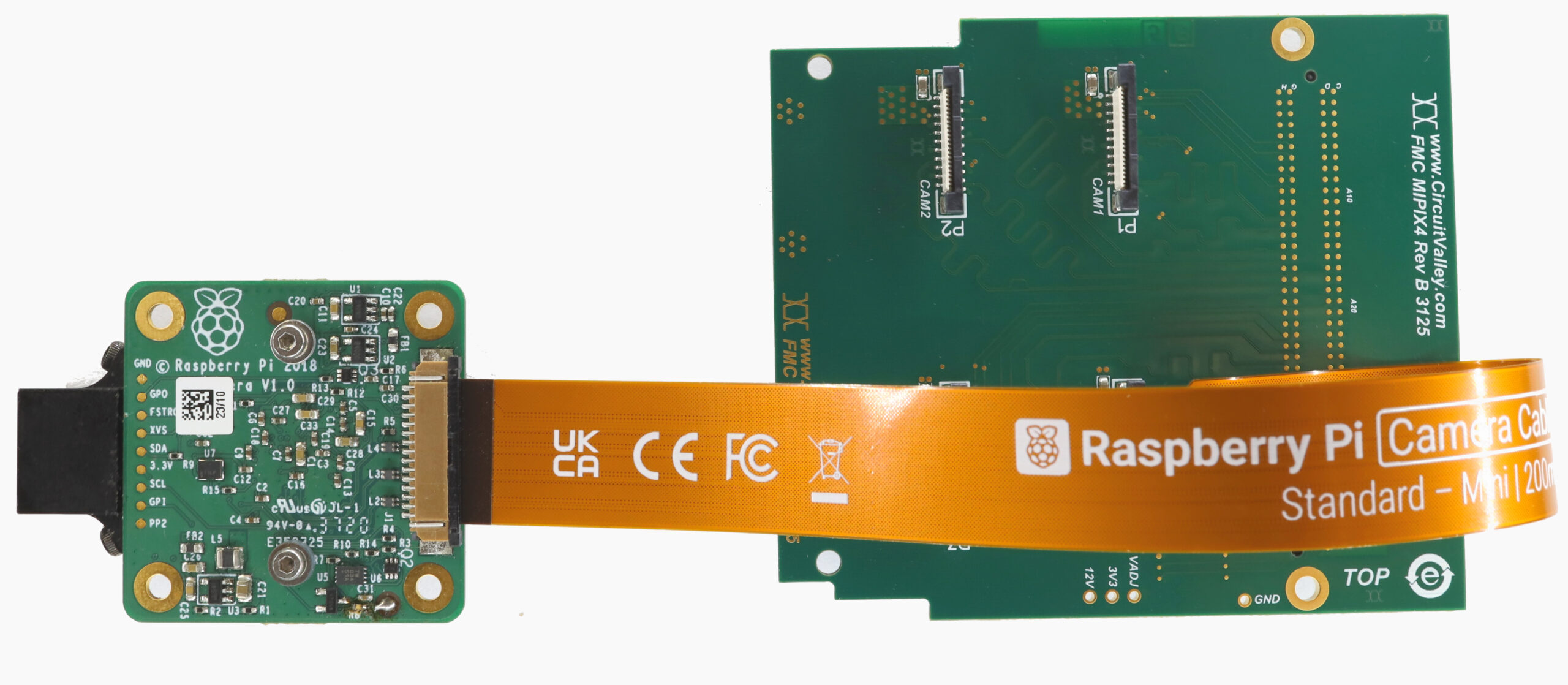

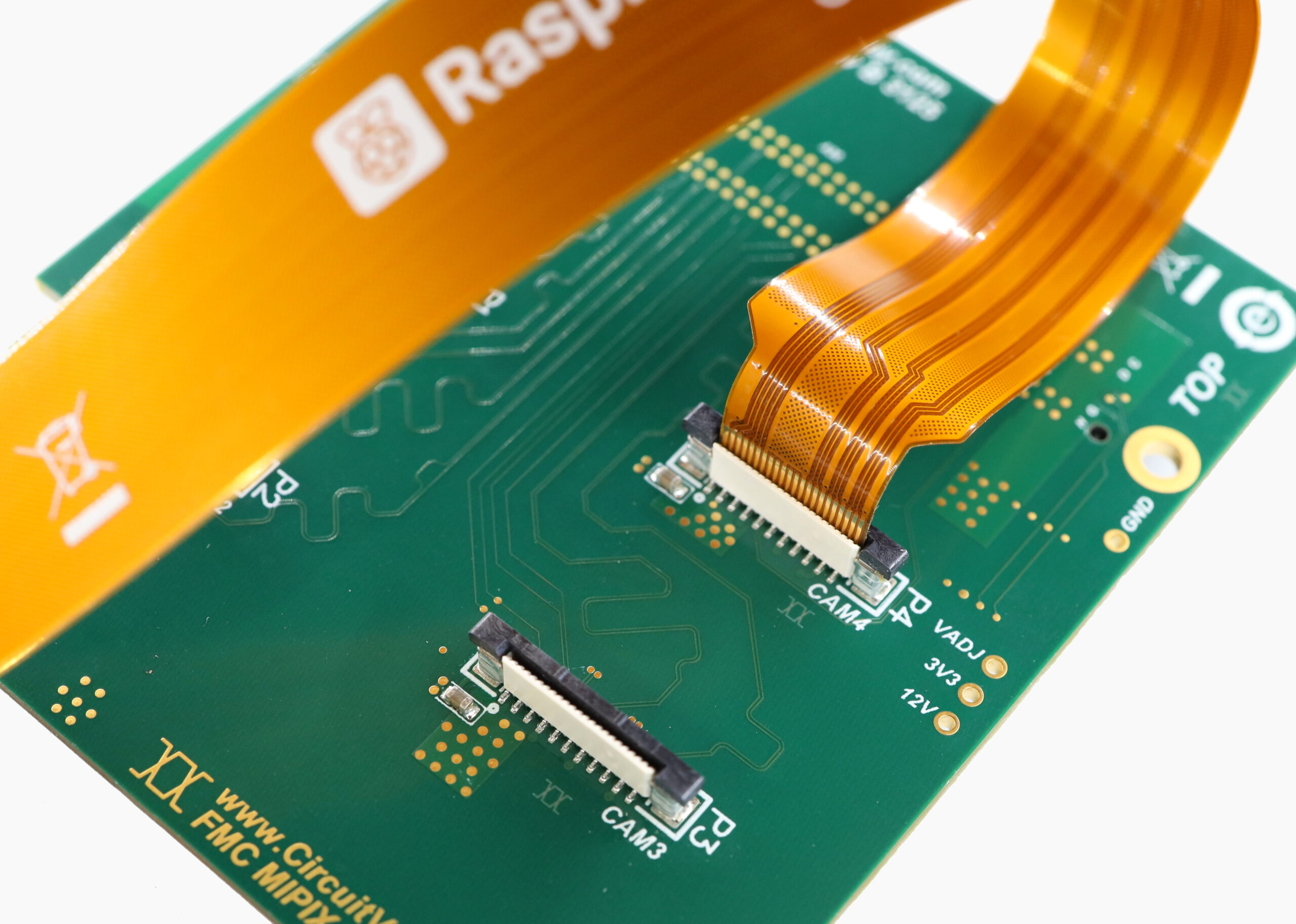

Compatible Standard 2Lane Rapsberry Pi 15Pins 1mm Pitch Cameras using RPI to Mini FPC Cable.
Compatible to Digilent PCam cameras.
Example Video ISP pipeline working under Linux as V4L2 medica driver on ZCU102 and ZCU106 Provided as Reference example.
Normal FPGA FMC Board comes from big manufacturer, Availability of such board is very very rare.
Board is VITA57.1 Compliant Has EEPROM to Configure voltages.
This is Rev D of Board, Works with ZCU106 and ZCU104, ZCU102
Both ZCU106 and ZCU104 are supported by Free Xilinx Vivado
