Name: IMX294 10.7MP 4/3-inch Low-Light Camera Module for Raspberry Pi &amp; NVIDIA Jetson
SKU: CHC5-MOD-IMX294
Availability: BackOrder

CHC5 camera module with the Sony IMX294 (10.7 MP, 4/3″, 4.63 µm, rolling shutter) – massive 4/3″ format, low light, high sensitivity. Use it with a Raspberry Pi, NVIDIA Jetson or other single-board computer through the included adapter, or inside the CHC5 FPGA camera.

Specifications

Sensor	Sony IMX294
Shutter	Rolling shutter
Optical format	4/3″
Resolution	3792 × 2824 (10.7 MP)
Pixel size	4.63 µm
Color / Mono	Color
Sensor max. frame rate	120 fps @ 4K (10-bit) (sensor limit; see CHC5 ISP throughput)
Pixel bit depth	RAW10 / RAW12 / RAW14
HDR	Quad Bayer HDR
Lens mount	M42 Low Flange included – free swap to C, CS, S (M12), M42 Low Flange, M42 Standard, Canon RF, Sony E or MFT
Lens	Not included – use any lens that fits the chosen mount
Connection	Standard Raspberry Pi / NVIDIA Jetson / SBC MIPI camera connector (via included adapter) or CHC5 camera
Raspberry Pi boards	Raspberry Pi 5, Raspberry Pi 4 Model B, Raspberry Pi 3 Model B/B+, Raspberry Pi Zero 2 W, Raspberry Pi Compute Module 5 (CM5), Raspberry Pi Compute Module 4 (CM4)
NVIDIA Jetson boards	NVIDIA Jetson AGX Orin, NVIDIA Jetson Orin NX, NVIDIA Jetson Orin Nano, NVIDIA Jetson Xavier NX, NVIDIA Jetson Nano

What’s in the box

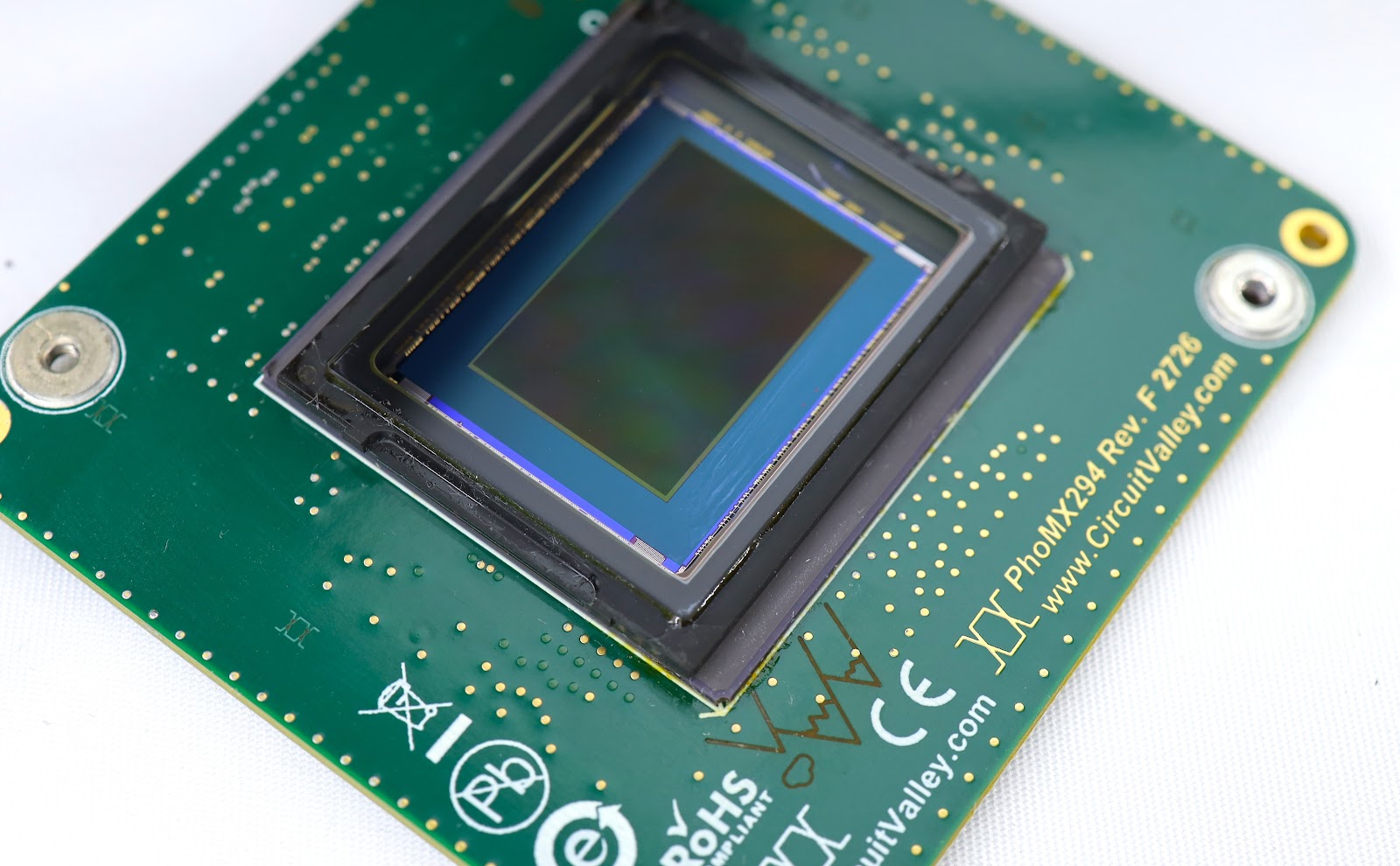

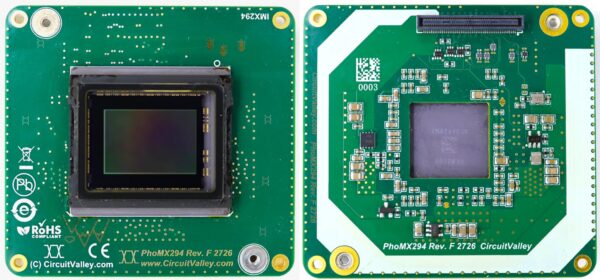

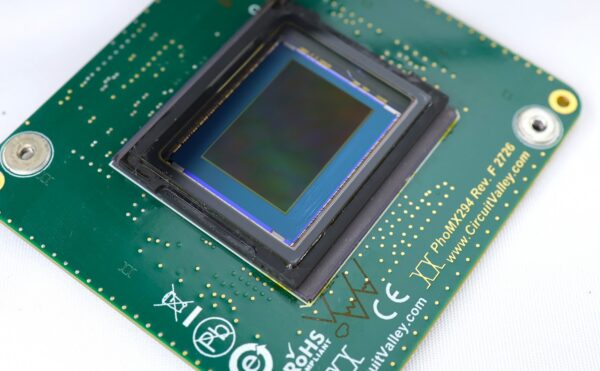

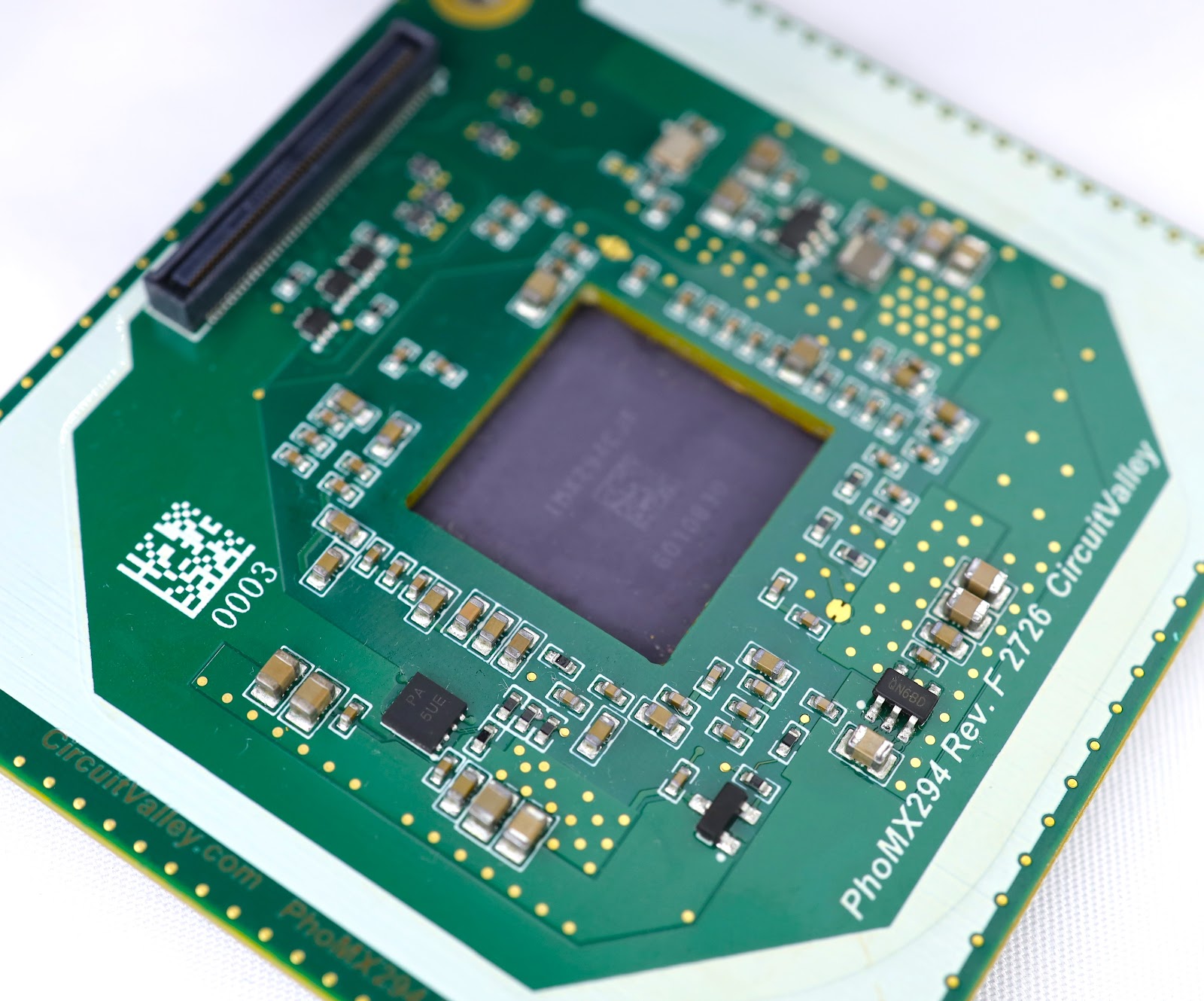

Sony IMX294 sensor board
Aluminium lens mount (M42 Low Flange or your choice)
Sensor to Raspberry Pi / NVIDIA Jetson adapter kit
Aluminium lens mount core

Documentation & Open Source

CHC5 on GitHub – hardware files, FPGA project and software
Sensor comparison
CHC5 system overview
Lens mounts and sensor support
Software architecture (GigE Vision, USB3 Vision, web UI)
FPGA ISP architecture

Sensor	Sony IMX294
Resolution	10.7 MP
Shutter	Rolling shutter
Optical format	4/3"
Mount	C-Mount, Canon RF, CS-Mount, M42 Low Flange, M42 Standard, Micro Four Thirds (MFT), S-Mount (M12), Sony E

Hersteller / Manufacturer:
…

Verantwortliche Person in der EU / Responsible person in the EU: der Hersteller (siehe oben) / the manufacturer (see above)

Produkt / Product: IMX294 10.7MP 4/3-inch Low-Light Camera Module for Raspberry Pi & NVIDIA Jetson — Art.-Nr. / SKU: CHC5-MOD-IMX294

WEEE-Reg.-Nr.: DE90905884

Sicherheitshinweise / Safety information:

Elektronische Baugruppe für technisch versierte Anwender – kein Spielzeug. Außerhalb der Reichweite von Kindern aufbewahren.
Electronic assembly for technically skilled users – not a toy. Keep out of the reach of children.
Empfindlich gegen elektrostatische Entladung (ESD): nur an einem geerdeten Arbeitsplatz handhaben.
Sensitive to electrostatic discharge (ESD): handle only at a grounded workstation.
Nur mit der angegebenen Versorgungsspannung und geeigneten Netzteilen betreiben; Ein- und Ausgänge nicht mit falscher Spannung beschalten.
Operate only with the specified supply voltage and suitable power supplies; do not apply wrong voltages to inputs or outputs.
Nicht in feuchter oder nasser Umgebung verwenden und vor Überhitzung schützen.
Do not use in damp or wet environments; protect from overheating.
Entsorgung: nicht in den Hausmüll – bei einer Sammelstelle für Elektroaltgeräte abgeben.
Disposal: do not put in household waste – take to a collection point for waste electrical equipment.
